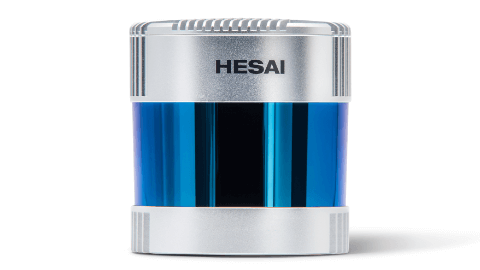

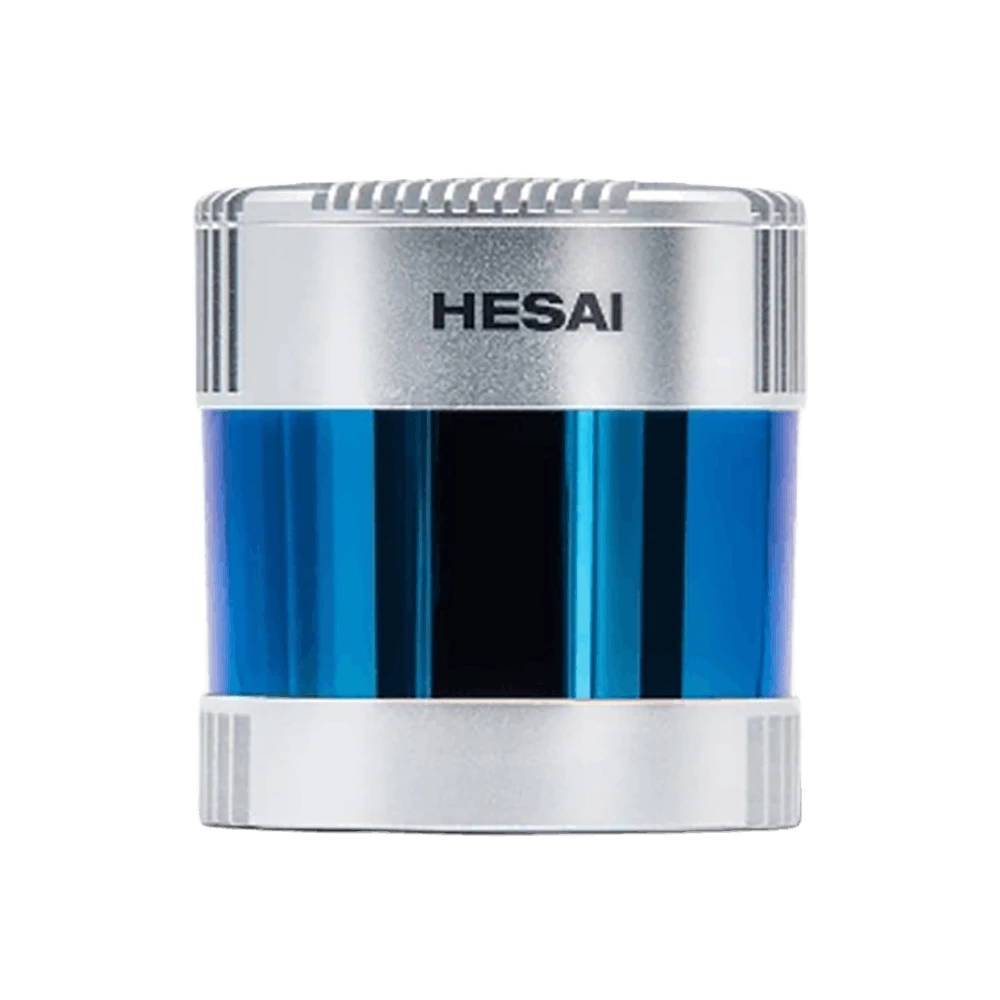

HESAI Pandar128 Long Range Automotive High Performance Lidar Sensor

Auto-Grade 128-Channel 360°
High-Performance Long-Range Lidar

Login to See Price
Receive Quote
HESAI Pandar128 Long Range Automotive High Performance Lidar Sensor
HESAI Pandar128 Long Range Automotive High Performance Lidar Sensor

Auto-Grade 128-Channel 360°
High-Performance Long-Range Lidar

0.1° HORIZONTAL RESOLUTION（@10 HZ)

HIGH RESOLUTION

Long-Range Lidar

PANDAR128

*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.

SPECIFICATION DETAILS

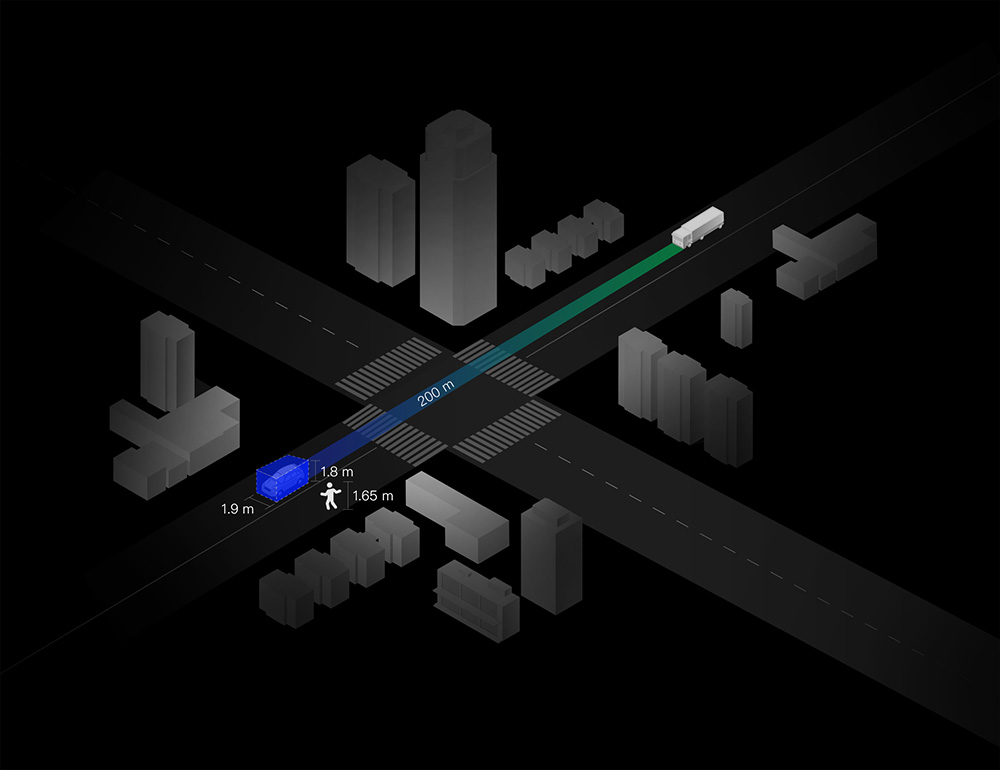

200 m @10% Reflectivity

Ranging Capability

3,456,000 [Single Return] 6,912,000pts/s [Dual Return]

Point Rate

360° x 40°

Field of View

0.1° (H) x 0.125° (V)

Angular Resolution

Φ 116 x H 123.7 mm

Dimensions

UV Aging

High-Temperature

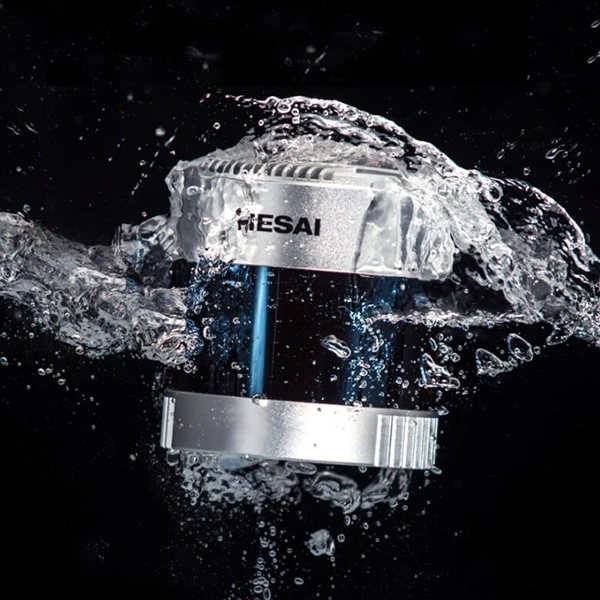

IP6K7IP6K9K

IP6K7 & IP6K9K

Mechanical Shock

Salt Spray

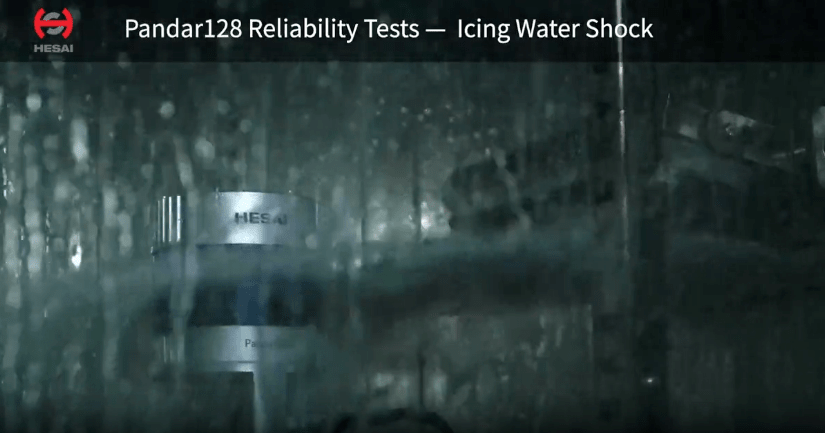

Thermal Shock with Water Splash

Low-Temperature Wakeup

Humid Heat Cyclic

Vibration with Thermal Cycling

Electrical & Electronic Test

CLASS 1CLASS 1SAFETYSAFETYEYEEYE

Class 1 Eye Safety

PROCESSPROCESS

ISO 26262 ASIL B Functional Safety Product Certification

ISO 21434 Cybersecurity Product Certification

PROCESSPROCESS

ISO 26262 Compliant Development Process

ISO 21434 Compliant Development Process

ISO 21448 Compliant Development Process

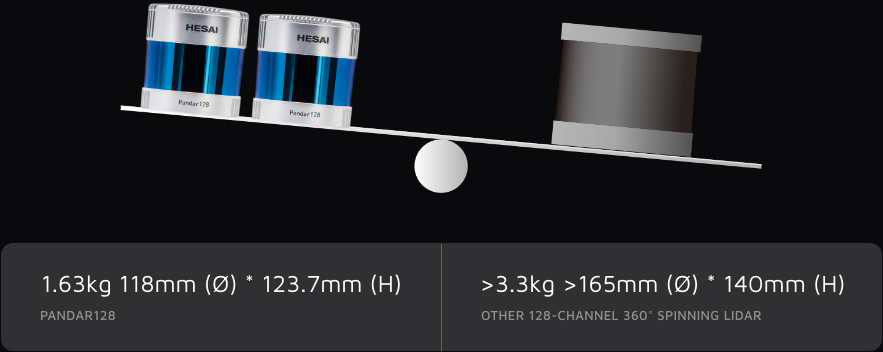

Optimized system architecture

Compact and Lightweight

hesai-pandar-128-lightweight-lidar

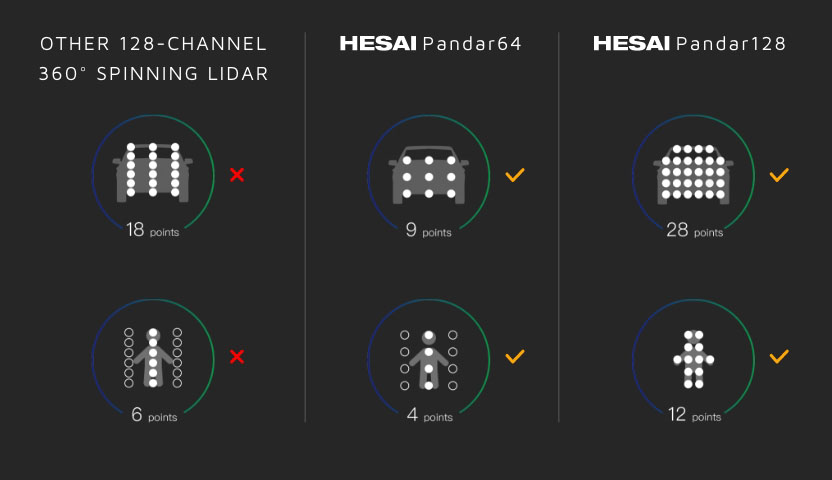

Every pulse has its own ‘fingerprint’

Interference Rejection

Point rate up to 3,456,000 points/sec (single return)

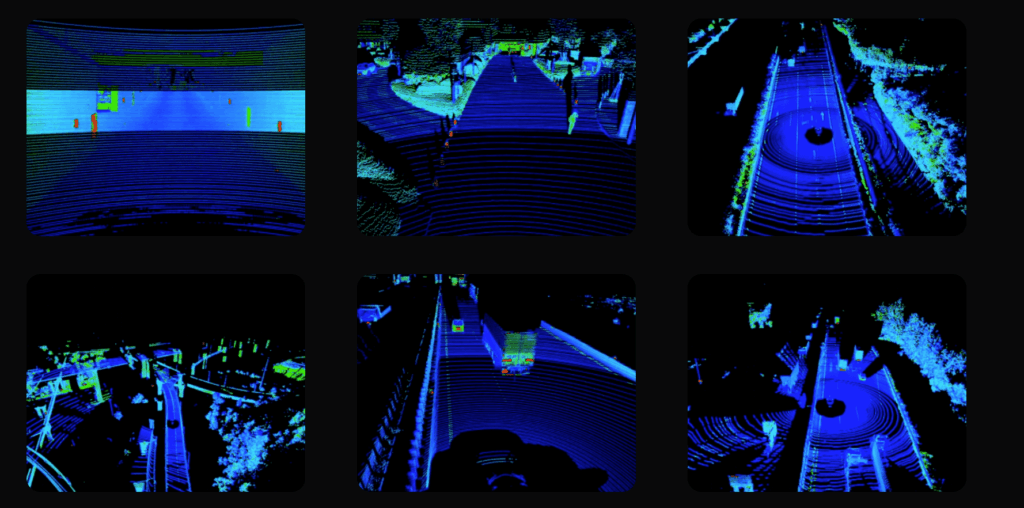

Image-like Point Cloud Performance

Point Cloud Performance lidar-pandar-128

Automotive-Grade Reliability

DV tests based on international OEM standards; covered more than 50 reliability tests. Designed lifetime is over 30,000 hours (typical).

APPLICATIONS

Robotaxi
Robotaxi
Robotrucking
Robotrucking

Related Products

Related products

FAQ

The prices quoted are DAP and do include shipping, but do NOT include tariffs. If the sensor will be shipped to the US and you prefer DDP pricing (including tariffs), please contact our sales team at hesai@cratustech.com.

Hesai maintains a healthy stock of all their standard sensors (usually in the hundreds), so lead time is typically 2-3 weeks from receipt of order.

Yes! For larger orders, please contact our sales team at hesai@cratustech.com.

The lidar sensors come with a connection box, a cable that connections the lidar to the connection box, and a power supply. You only need to supply an RJ45 ethernet cable to connect to the connection box.

Yes, both CRATUS and Hesai have technical support staff in the US and abroad to support our customers.

No, the connection box translates automotive ethernet to standard ethernet and provides a convenient power connection. Customers who want to directly integrate the lidar may do so.

Sensors do NOT contain any form of wifi or wireless communication method and it does NOT include a hard disk drive to store data.
