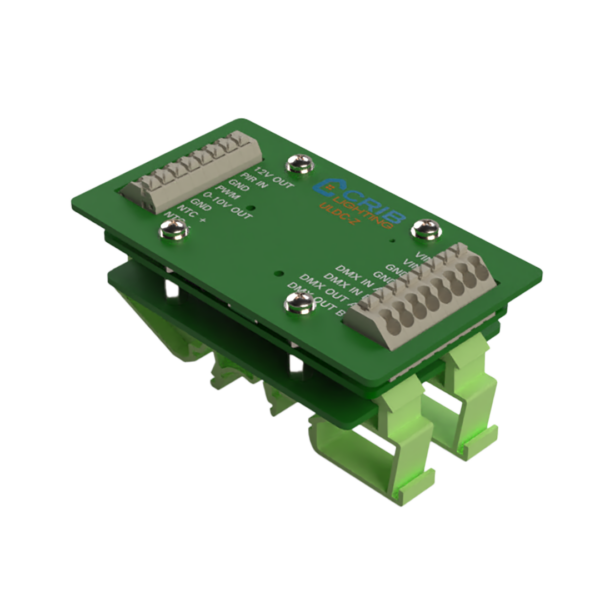

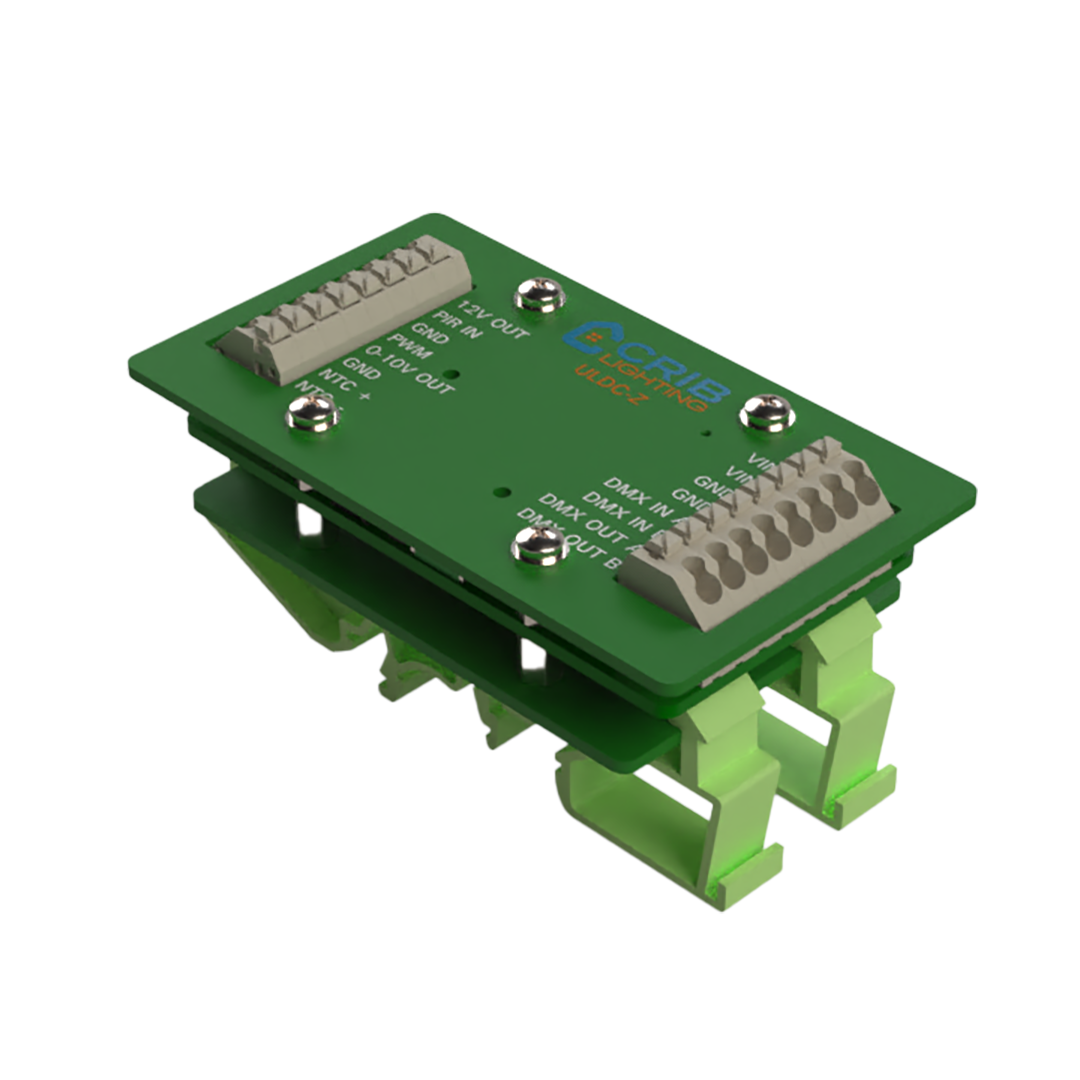

ULDC-Z – DIN
DIN rail mountable 0-10V, DMX, PWM LED Dimming Controller
$179.00
Available on backorder
The Universal LED Driver Controller (ULDC) is an easy-to-install, highly flexible system
that enables you control your LED lighting fixtures wirelessly with 0-10V, DMX, and PWM Dimming Controls, DIN rail mounting option.
0V-10V dimmable LED driver controller
Powered from a 12V or 24V DC supply
Operates with lighting systems with up to 480V AC input
Manages dimming levels for 0-10V and/or 1-10V drivers for LED fixtures
ELECTRICAL | |
Supply Ratings | |
Supply Voltage | 12V-Minimum, 36V-Maximum |
Maximum Current | ± 20mA |
Output Ratings | |
Output Voltage | 0-10V |
MECHANICAL | |||
Operating Conditions | |||
Operating Temperature | −20℃ to 85℃ | ||
Storage Temperature | −40℃ to 125℃ | ||
Relative Humidity | 0 – 95 % Non-Condensing | ||
Dimensions | |||
L × W × H | 5” X 2 ½” X 1 ¾“ | ||
Connector Thread Type | ½NPT, 14 Threads Per Inch | ||
CRIB Lighting systems product portfolio prioritizes and targets new constructions as well as retrofits in residential applications. However, the system can be used in a variety of settings from residential to commercial lighting, indoor and in some cases outdoor lighting applications.
Individual ULDC Control

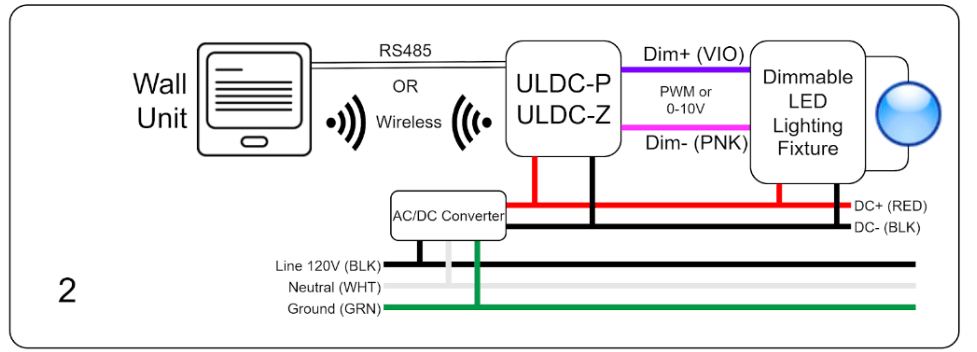

When the CRIB Lighting system is applied to a single zone, such as a room or a large common area in a residential case, the system controls the turning on and off as well as dimming for the load controllers, in turn the lighting fixtures that are present in the zone.
Zone Controls (multiple ULDC controls)
It can also be connected to a group of lights, driving the intensity of all fixtures in the group at once. ULDC-T accepts 3 way controls; if you have multiple wall units in your deployment, these will update as one of them changes–allowing for multiple endpoint control of a single ULDC.
12V to 24V Input 0V-10V or PWM Dimmer Controller – Driving Low Voltage LED Lighting Systems
