Scanners for
AEC (Arch. Eng. & Const.)
Browse our products by end market and application. Each panel groups use cases by product, with a side-by-side specification comparison across manufacturers.

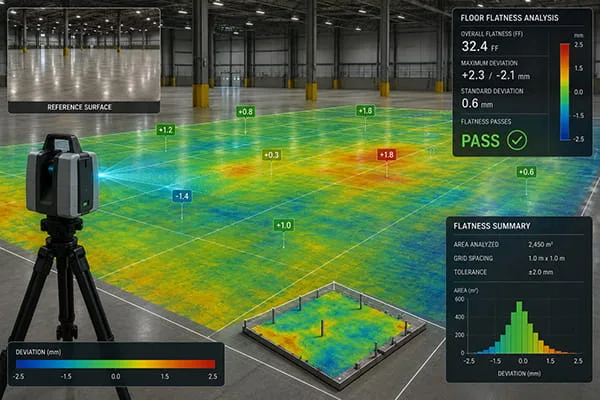

Scanners for architecture, engineering, and construction require portable form factors, robust SLAM algorithms, and sub-centimeter accuracy for precise digital twin generation. These systems help teams capture existing conditions, verify construction progress, inspect flatness, calculate volumes, and document built environments.
Products
- SX: SXMCA LITE, SXMCA-PRO, SXMCA2
| Sensor | Scan type | Vertical channels | Horizontal channels | FOV — horizontal | FOV — vertical | Range @10% | Minimum range | Accuracy | Weight | Power | Protection | Temperature range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SXSXMCA PRO | Handheld SLAM | 128 | Not published | 360° | 42.4° | 90 m | 0.5 m | 5 mm relative / <3 cm absolute | 1,160 g (1,325 g w/ RTK) | <26 W | IP5X | -20 °C to +55 °C |
| SXSXMCA Lite | Handheld SLAM | 181-eq | 2400 | 360° | 65° | 40 m | 0.05 m | 8 mm relative / 5 cm absolute | 760 g main / 1,123 g with battery | <20 W | IP5X | -20 °C to +55 °C |
| SXSXMCA2 | Handheld SLAM | Not published | Not published | 360° | 59° | 40 m | 0.1 m | <1 cm relative / 5 cm absolute | 982 g (main 619 g) | <20 W | IP5X | -20 °C to +55 °C |
USE CASES
SXMCA Lite
High Precision Special Scanning for AEC Applications
<1 cm Accuracy · 360° Scanning · Real-Time, Ready-to-Use Point Clouds
USE CASES
SXMCA-PRO
Architecture , Engineering , Construction (AEC)
360 degrees LiDAR with High Speed Scanning
Built in RTK
Ultra Light Weight, Ultra Powerful
USE CASES

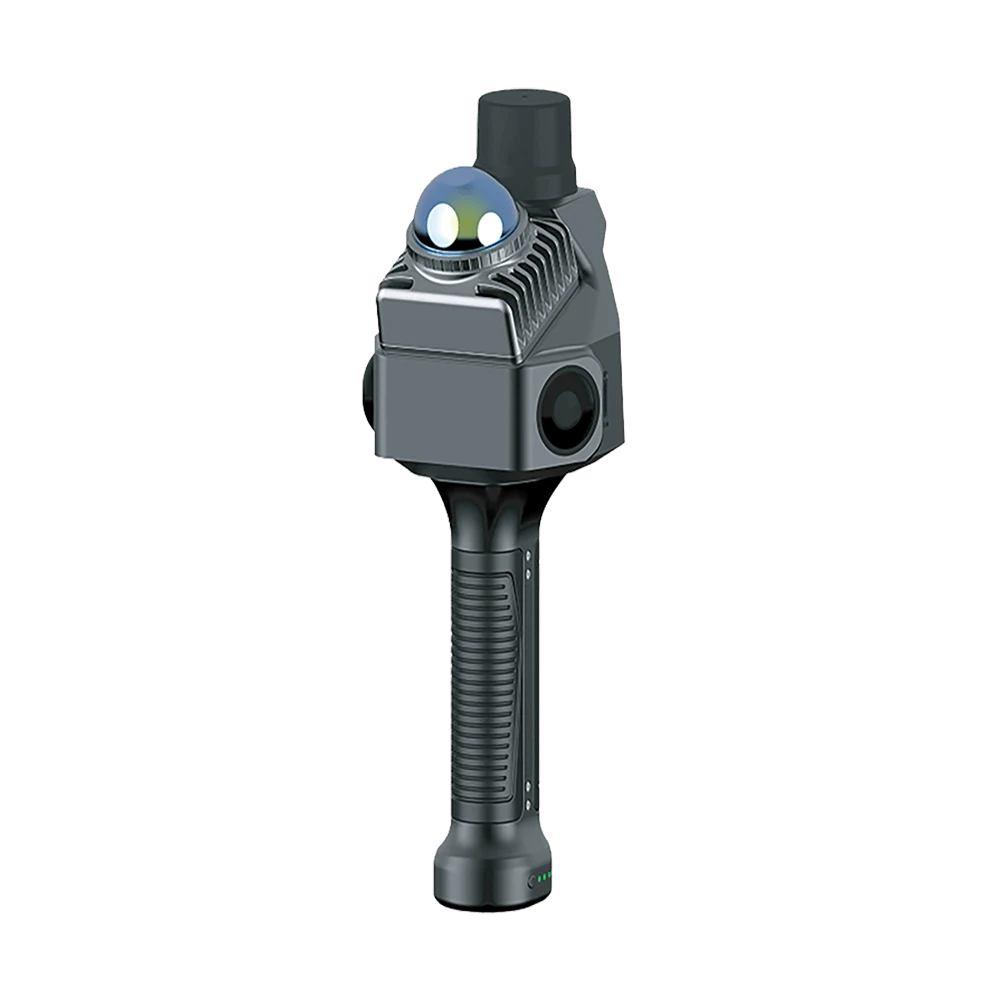

SXMCA2
360 degree LiDAR
Built in RTK
Light weight scanner with high resolution cameras
