Lidars for
Infrastructure & ITS
Browse our products by end market and application. Each panel groups use cases by product, with a side-by-side specification comparison across manufacturers.
Smart infrastructure deployments require rugged sensors with broad intersection coverage, real-time analytics capability, reliable network compatibility, and 24/7 operation in changing outdoor conditions. LiDAR enables traffic, pedestrian, rail, tolling, and parking monitoring without relying on standard camera-based identification.
Products
- HESAI: AT128, ATX, OT128, PANDAR128
- ROBOSENSE: EM4
- SEYOND: FALCON-K, ROBIN-E1X, ROBIN-W
| Sensor | Scan type | Vertical channels | Horizontal channels | FOV — horizontal | FOV — vertical | Range @10% | Minimum range | Accuracy | Weight | Power | Protection | Temperature range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HESAIPandar128 | Mechanical | 128 | N/A (0.1°/0.2° @10 Hz · 0.2°/0.4° @20 Hz) | 360° | 40° | 200 m | 0.3 m | ±8 cm (0.3–0.5 m); ±5 cm (0.5–1 m); ±2 cm avg. (1–200 m) | 1.63 kg | 23 W standard / 27 W high res. | IP6K7 / IP6K9K | -40 °C to +85 °C |
| SEYONDRobin W | Semi-solid-state | 192 lines | 800 | 120° | 70° | 70 m | 0.1 m | ±2 cm | 800 g | <7.2 W | IP67 body / IP69K window | -40 °C to +85 °C |
| HESAIOT128 | Mechanical | 128 | N/A (0.1°/0.2° @10 Hz · 0.2°/0.4° @20 Hz) | 360° | 40° | 200 m | 0.3 m instrumented | ±3 cm (3–200 m) | 2.2 kg | 29 W | IP6K7 / IP6K9K | -40 °C to +75 °C |
| HESAIAT128 | Hybrid solid-state | 128 | 1200 | 120° | 25.4° | 210 m | 0.5 m | ±5 cm | 940 g | 13.5 W | IP6K7 / IP6K9K | -40 °C to +85 °C |
| HESAIATX | Hybrid solid-state / 1D mirror | 116 | 1500 @10 Hz | 120° | 18.3° | 200 m | 0.5 m instrumented | ±5 cm | 355 g | 10 W | IP6K7 / IP6K9K | -40 °C to +85 °C |
| RoboSenseEM4 | Hybrid solid-state / 1D rotating mirror | 520 (std) / up to 2160 | Up to 1900 | 120° | 27° | ≥250 m | 1 m | ±5 cm | <1000 g | 15 W | IP67 / IP6K9K | -40 °C to +85 °C |
| SEYONDFalcon K1 | Semi-solid-state | 150 lines | N/A (0.18°×0.24°; ROI 0.06°×0.06°) | 120° | 25° | 250 m | 1.5 m | ±5 cm | 1.7 kg | 30 W | IP67 body / IP69K window | -40 °C to +85 °C |
| SEYONDRobin E1X | Semi-solid-state | 96 lines (192 super-res) | 1200 | 120° | 20° | 200 m | 1 m | ±5 cm | 470 g | 6.3 W | IP67 body / IP69K window | -40 °C to +85 °C |
USE CASES
OT128
Scalable 360-Degree Perception
Calibration Free 360° Unstitched FOV
USE CASES
Pandar128
Auto-Grade 128-Channel 360°
High-Performance Long-Range Lidar
USE CASES
Robin-W
High performance for passenger and commercial vehicles under highway conditions
USE CASES
Robin-E1X
Mid Range, compact, affordable solution for general purpose autonomy
USE CASES

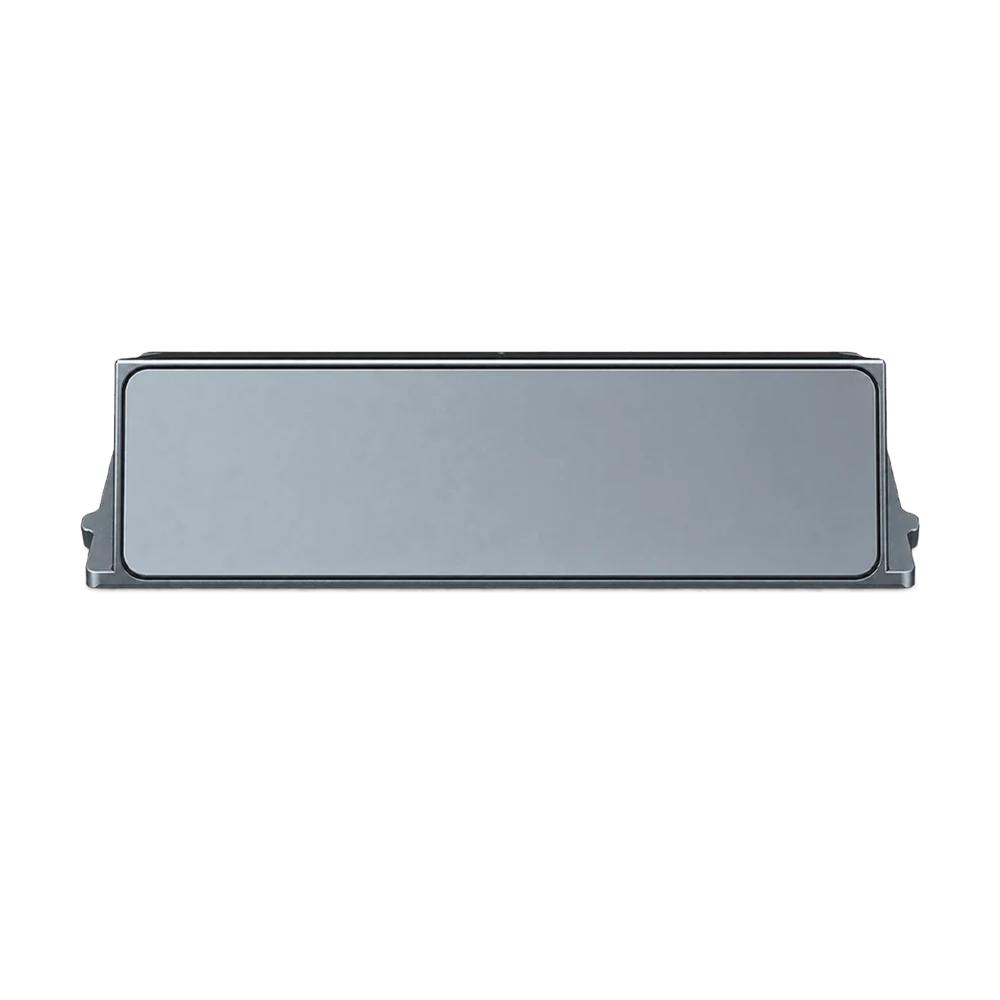

EM4
The world’s first “thousand-beam” long-range digital LiDAR, delivering 2K high-definition 3D perception with 2160 beams, a 600 meter detection range and 41.04 million points per second for L3 and above autonomy.
USE CASES
USE CASES
ATX
Auto-Grade Compact 120°
High-Resolution Long-Range Lidar
USE CASES
Falcon-K
Wide FOV, compact, high resolution, blind spot detection, robotics, heavy equipment autonomy
