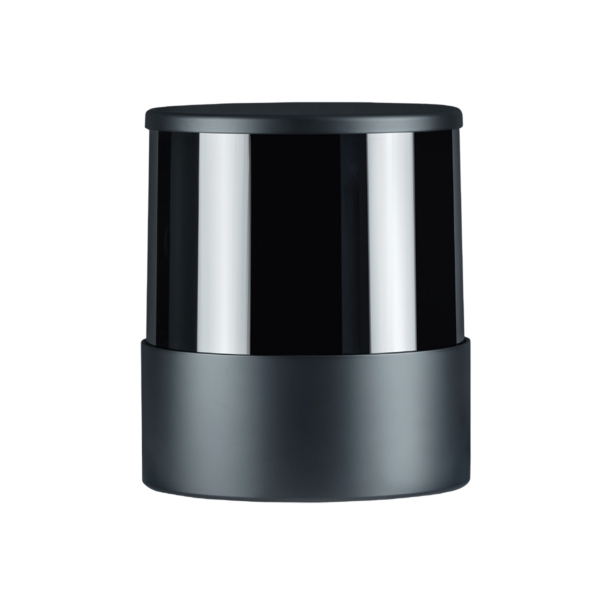

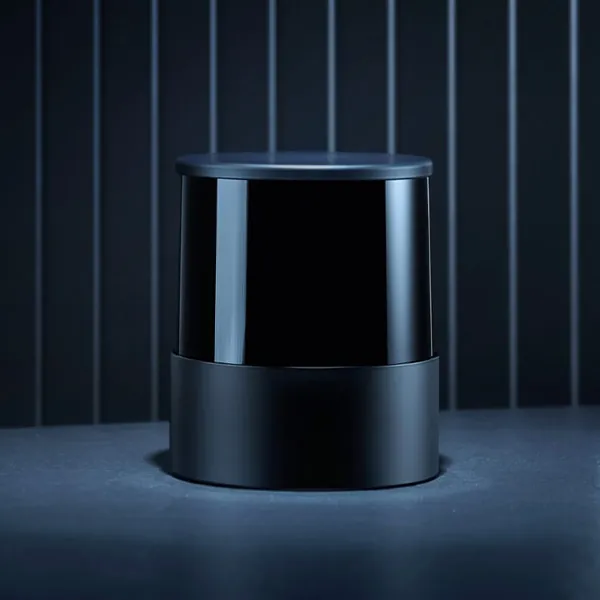

HESAI OT128 Long Range ASIL-B Safety Rated High Performance Ground Truth Lidar Sensor

Scalable 360-Degree Perception
Calibration Free 360° Unstitched FOV

END MARKETS

AUTOMOTIVE ADAS INDUSTRIAL AUTOMATION MAPPING & SURVEY SMART INFRASTRUCTURE & ITS

$16,000.00

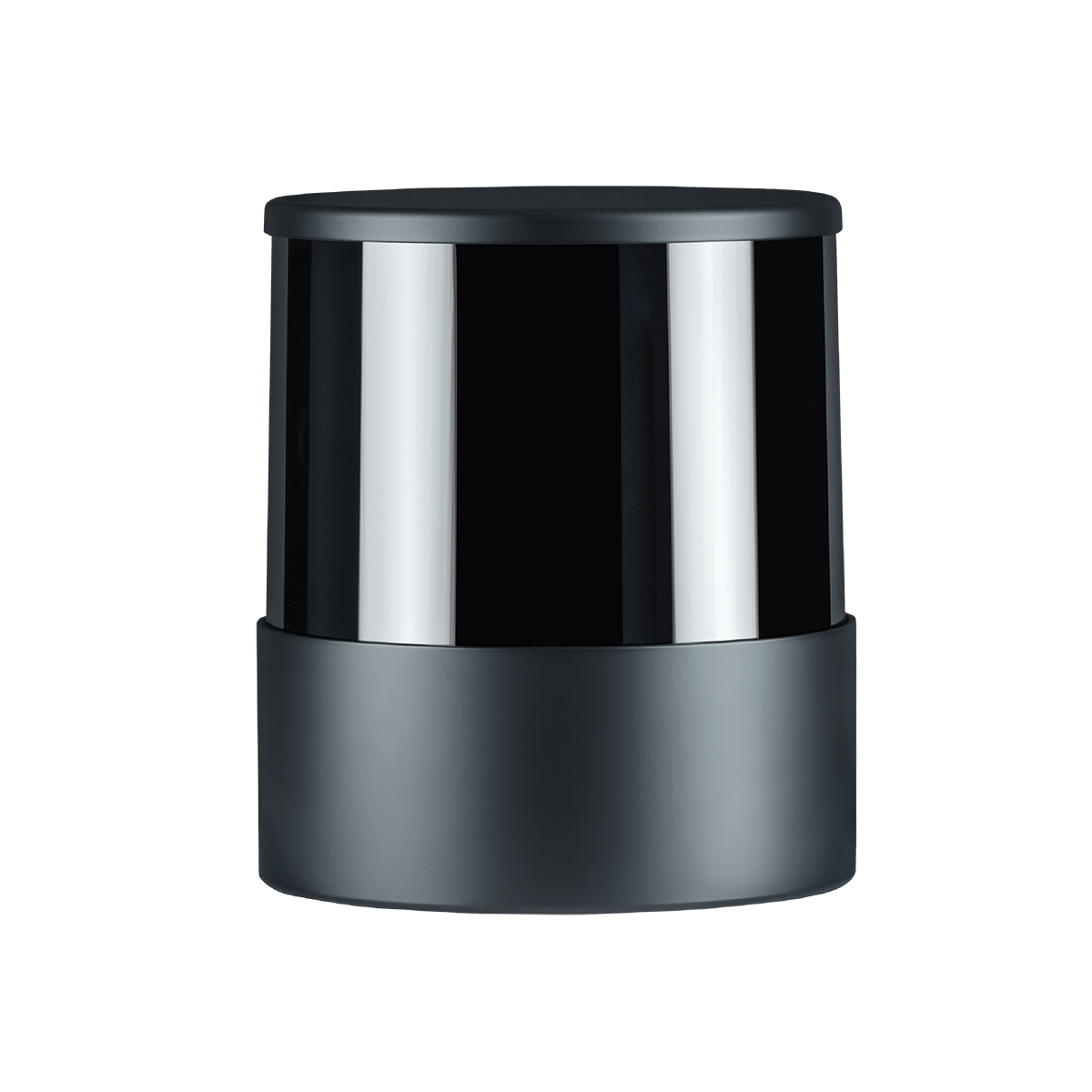

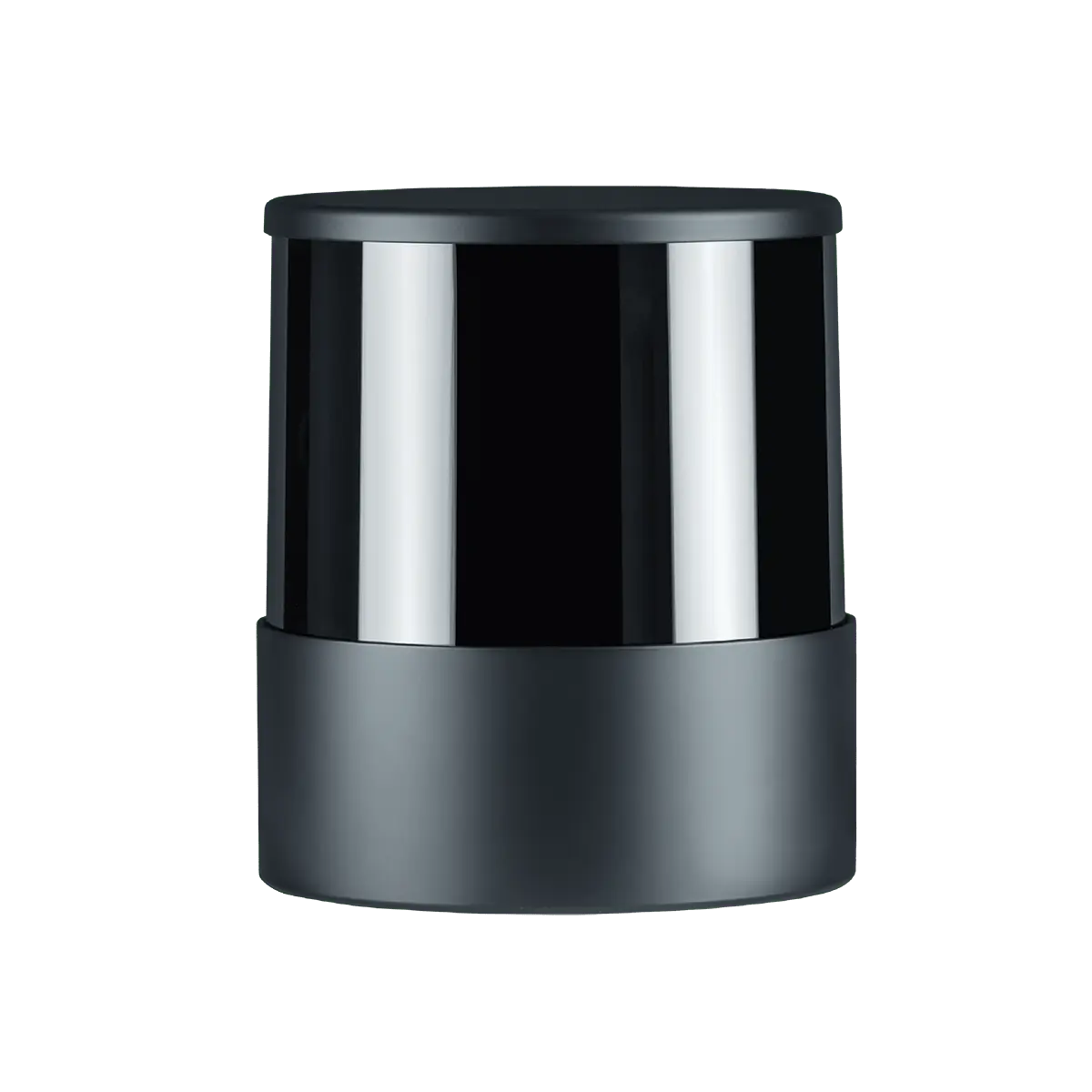

HESAI OT128 Long Range Rated High Performance Sensor

Scalable 360-Degree Perception

The OT128 spinning lidar utilizes a simplified transceiver module design to significantly reduce the cost while still maintaining extremely high performance and reliability.The unique combination of high-performance 360-degree perception and affordability makes the OT128 the ideal lidar solution for scalable autonomous driving applications.

HESAI OT128 - Key Specifications

Point Rate

3,456,000 points/s (Single Return)
6,912,000 points/s (Dual Return)

Field of View

360° (H) x 40° (V)

Power Consumption

29 W

Angular Resolution (Finest)

0.1° (H) x 0.125° (V)

Range

200 m @10% Reflectivity, 230 m Maximum

Size (Max. Diameter x Height)

118.0 mm x 132.3 mm

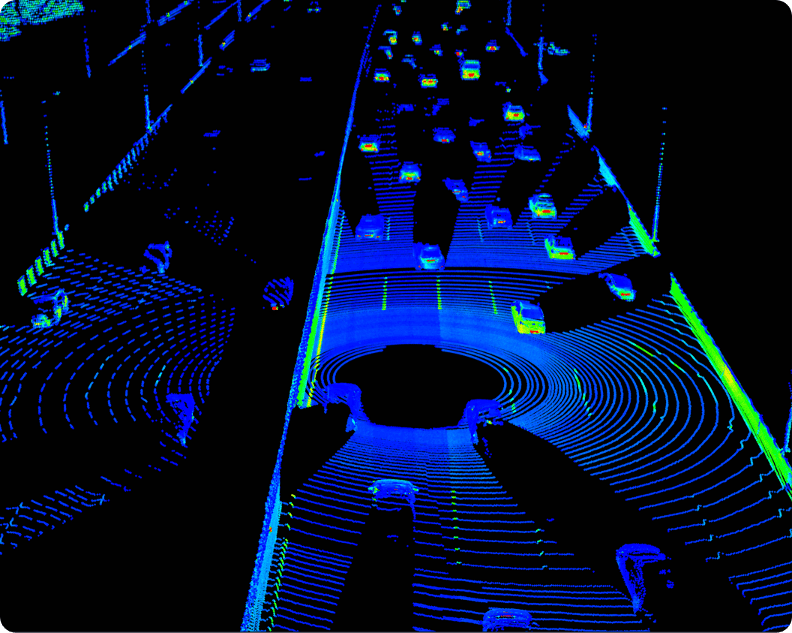

Calibration Free 360° Unstitched FOV

A single OT128 lidar can cover a vehicle’s entire field of view without stitching, eliminating the need for multiple calibration steps which can significantly accelerate algorithm development.

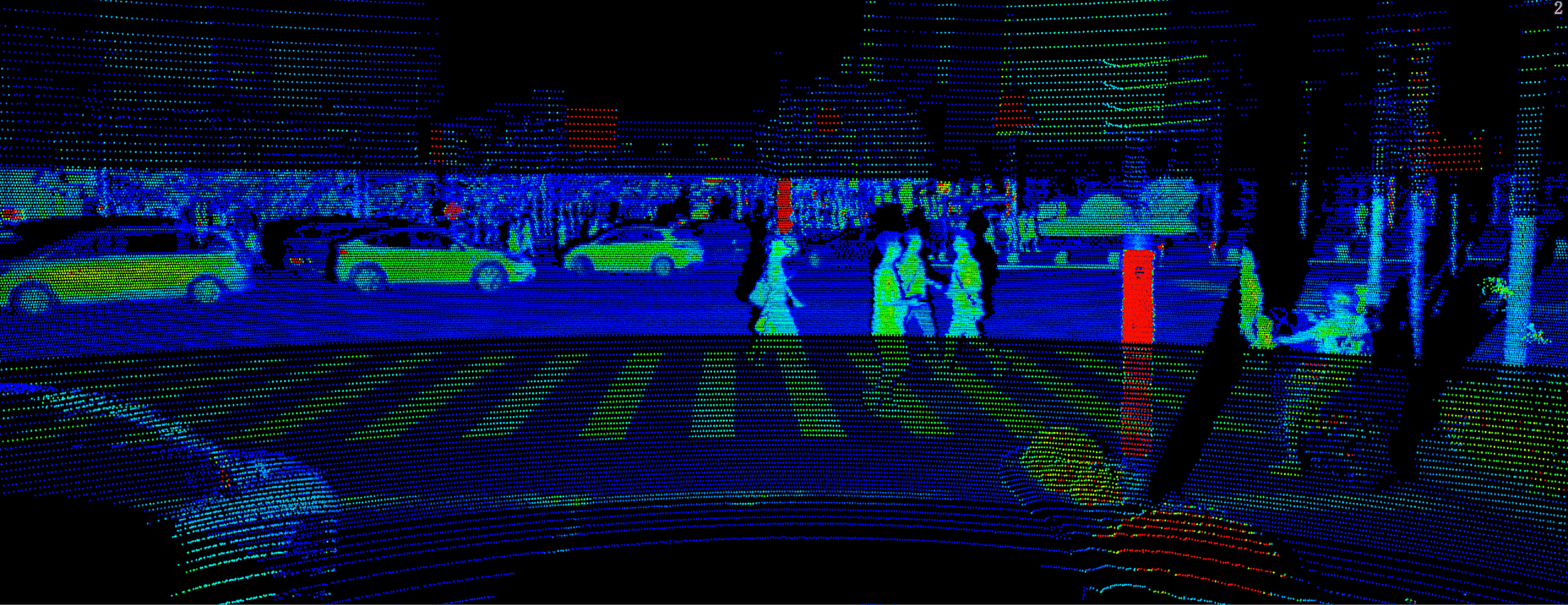

Ultra-High Resolution, Powering Seamless Intelligent Driving

With a finest angular resolution of 0.1° (H) x 0.125° (V), the OT128 can accurately perceive objects large and small at a distance of 200 meters away,
providing powerful perception data for autonomous driving systems.

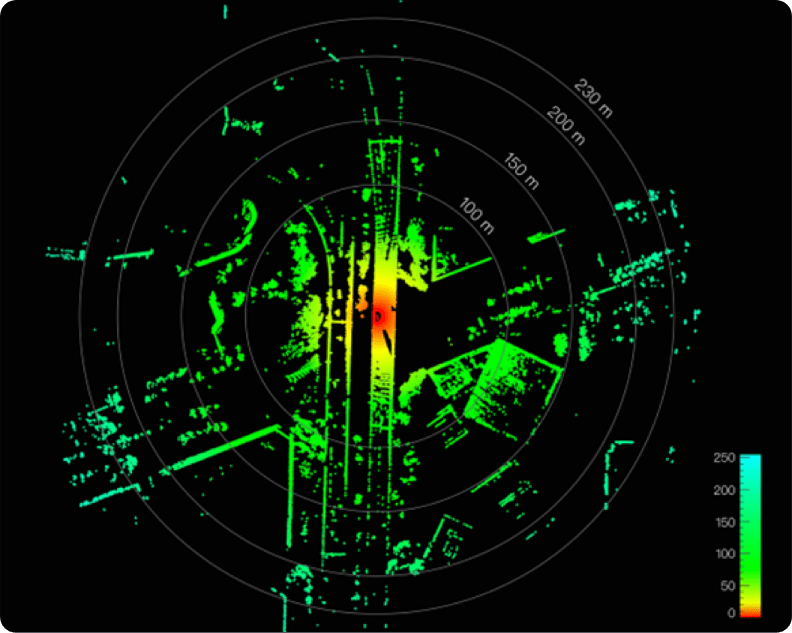

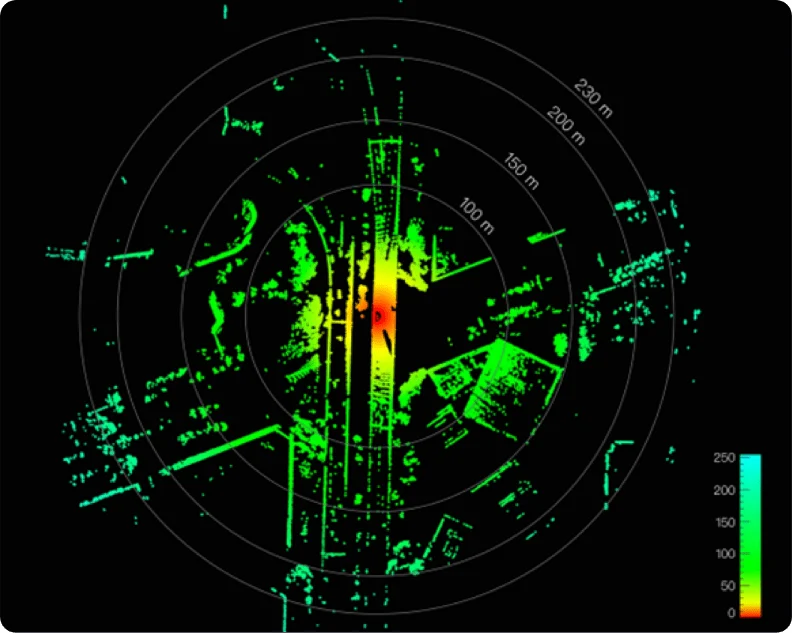

Long-Range Perception for Comprehensive On-Road Awareness

Under 100 klux strong ambient light, OT128 has a ranging capability of 200 m at 10% reflectivity (230 m maximum),
clearly detecting objects in real time and capturing every detail of its surrounding road conditions.

IPE: Noise Filter Function Enables All-Weather Perception

Leveraging Hesai’s proprietary Intelligent Point Cloud Engine (IPE), the OT128 is capable of detecting rain, fog, exhaust fumes, and water splashes on the road. It performs real-time marking of these phenomena at a pixel level, effectively filtering out environmental noise. This capability will significantly mitigate the impact of rain and fog on lidar performance, there by enhancing its clarity and enabling all-weather perception across various applications.

HESAI Lidar Sensor Selection Guide

Scroll to view all columns

	JT16	JT32	JT64P	JT128	FTX140/180	FT120	ATX	AT128	AT360	ETXP	XT16	XT32 XT32M1X	XT32M XT32m2X	QT128	OT128	Pandar128
Object Detection	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
Mapping			●	●								●	●		●	●
Object Identification	●			●			●	●	●	●		●	●	●	●	●
Automotive Grade					●	●	●	●	●	●				●	●	●
Channels	16	32	64	128	192x256	120x160	256	128	360	1080/2160/4320	16/32	32	32	128	128	128
Field of View	360° X 40°	360° X 40°	360° X 189°	360° X 99°	140° X 105° / 180° X 140°	100° X 75°	140° x 20°	120° X 25.4°	18° X 120°	120° × 20°	360° X 31°	360° X 31°	360° X 40.3°	360° X 105.2°	360° X 40°	360° x 40°
Range	30m @ 10% Reflectivity	30m @ 10% Reflectivity	40m @ 10% Reflectivity	20m @ 10% Reflectivity	30m @ 10% Reflectivity	22m @ 10% Reflectivity	200 m @ 10% Reflectivity	210m @ 10% Reflectivity	250m	300 m @ 10% Reflectivity	80m @ 10% Reflectivity	80m @ 10% Reflectivity	80m @ 10% Reflectivity	20m @ 10% Reflectivity	200m @ 10% Reflectivity	200 m @10% Reflectivity
Min Range	0m	0m	0m	0m		0.1m		1m			0.05m	0.05m	0.5m	0.05m	0.3m	0.3m
Weight	0.199kg	0.199kg	0.22kg	0.22kg	0.2kg	0.7 kg	0.36 kg	0.94 kg	950g	0.6 kg	0.8 kg	0.8kg	0.49 kg	0.7 kg	2.2 kg	1.63 kg
Accuracy		3cm			5 cm	5 cm		5 cm	5cm		1 cm	1cm	1 cm	3 cm	3 cm	5cm
Max Range	100m	100m	25m	25m		50m	300m	260m	300m		120m	120m	300m	50m	230m	200m
Resolution Horizontal	0.6°	0.6°	0.4°	0.45°	0.56°	0.625°	0.08°	0.1° - 0.2°	0.06° - 0.12°	0.06°	0.09° - 0.36°	0.09° - 0.36°	0.09° - 0.36°	0.4° - 1.6°	0.1° - 0.4°	0.1°
Resolution Vertical	2.67°	1.29°	1.5°	0.8°	0.56°	0.625°	0.1°	0.2° - 0.8°	0.05° - 0.1°	0.055°	1°/ 2°	1°	1.3°	0.4° - 1.6°	0.125° - 1.72°	0.125°
Availability	Phasing Out	Taking Orders	Taking Orders	Now	Sampling Now. Production June 2026	Phasing Out	Now	Now	Now	Sampling Now. Production 2027	Now	Now	Now	Now	Now	Phasing Out

Frequently Asked Questions

What is the HESAI OT128 LiDAR used for?

The HESAI OT128 is an automotive grade flagship 360° high performance long range LiDAR designed for scalable autonomous driving, robotaxi, robotrucking, stationary applications, service robots, and industrial automation. It is built for systems that need full surround perception, long range detection, and high density point cloud output from a single spinning LiDAR sensor.

Why is it suitable for scalable autonomous driving?

A simplified transceiver module design reduces cost while maintaining high performance and reliability — relevant for autonomous vehicle programs that need 360° perception at scale instead of more complex multi sensor setups.

Is it a 360 degree LiDAR?

Yes. It offers a 360° horizontal and 40° vertical field of view with calibration free, unstitched 360° perception, meaning one sensor can cover a vehicle’s surrounding field of view without combining multiple LiDAR views.

What is the detection range of the HESAI OT128?

Listed ranging capability is 200 m at 10 percent reflectivity and 230 m maximum — long range 360° coverage for autonomous driving, L4 mobility, port logistics, heavy machinery, and industrial robotics where early object detection is important.

What makes it different from Pandar128?

It is positioned as a newer scalable 360° long range LiDAR with a simplified architecture and significantly reduced component count compared to previous generation products, enabling automated mass production and faster production cycles.

Why does the high point rate matter?

The sensor generates 3,456,000 points per second in single return mode and 6,912,000 in dual return mode. This density helps autonomous systems capture detailed 3D information from surrounding vehicles, pedestrians, road edges, infrastructure, and industrial environments.

How does it support all weather perception?

An Intelligent Point Cloud Engine (IPE) detects rain, fog, exhaust fumes, and water splashes at pixel level, filtering environmental noise and improving perception clarity in challenging road and outdoor operating conditions.

Is it suitable for industrial robotics and logistics automation?

Yes. It fits L4 autonomous driving, port logistics automation, industrial robotics, heavy machinery, and smart factory applications — especially outdoor automation and large scale industrial environments that require 360° long range perception.

Is it reliable for automotive and outdoor environments?

Yes. Validation covers UV aging, high temperature, IP6K7 and IP6K9K protection, mechanical shock, salt spray, thermal shock with water splash, low temperature wakeup, humid heat cyclic testing, vibration with thermal cycling, and electrical and electronic testing, alongside automotive grade reliability standards and extended operational lifetime.

When should a team choose the HESAI OT128?

Choose the OT128 when you need a scalable 128 channel 360° long range LiDAR for L4 autonomous driving, robotaxi, robotrucking, port logistics, industrial robotics, heavy machinery, or smart factory applications — most relevant when 360° unstitched perception, 200 m detection, high point density, all weather perception, and cost efficient scalability matter together.
