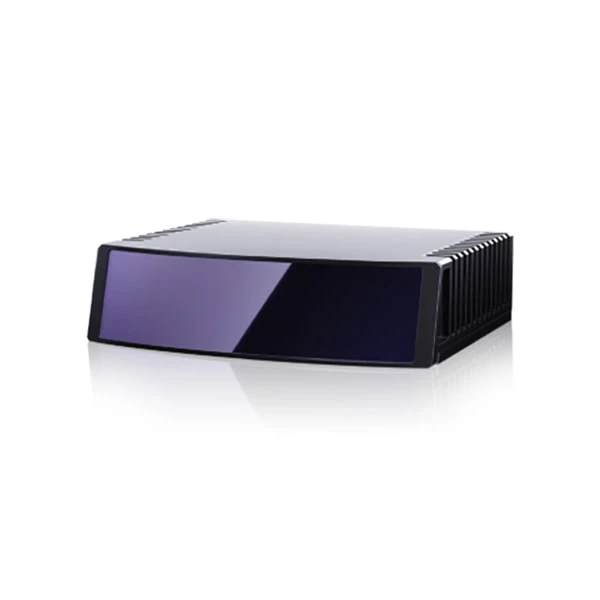

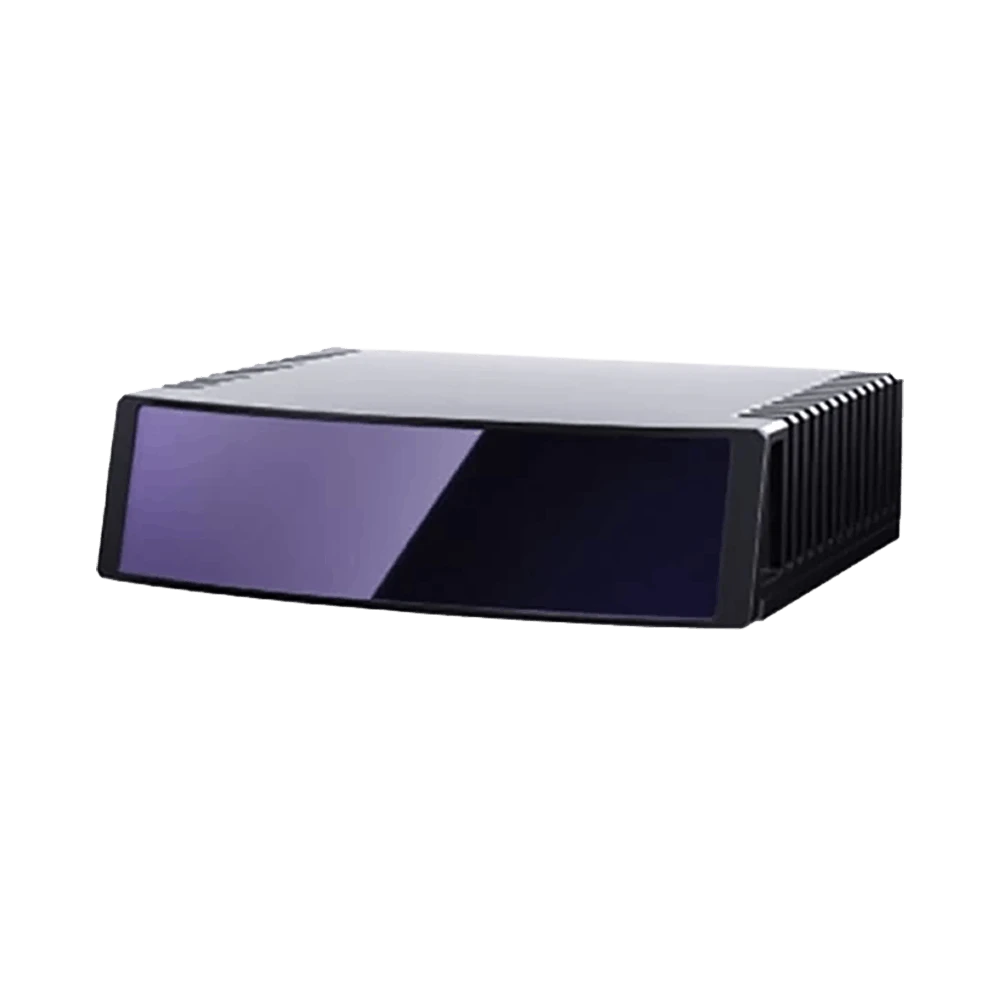

HESAI ETXP Ultra-High Resolution Long-Range Automotive Lidar Sensor
Automotive-Grade 120°
Ultra-High-Resolution Long-Range Lidar
END MARKETS
$5,750.00
HESAI ETX: Pushing the Limits of Range and Form Factor
Proprietary Photon Vector Technology
Equipped with Hesai’s proprietary photon vector technology, ETX extends ranging capabilities by 30% all while maintaining Class 1 eye safety compliance and reducing size and power consumption.
Long-Range Lidar

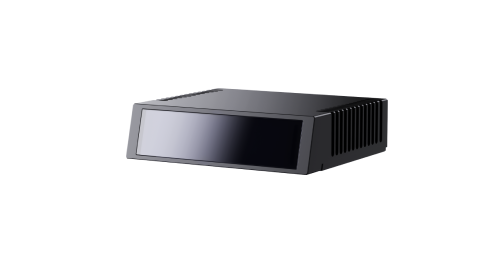

HESAI ETX
*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.
SPECIFICATION DETAILS
400 m @10% Reflectivity
Ranging Capability
5,600,000 pts/s [Single Return]
Point Rate
120° x 20°
Field of View
0.05° (H) x 0.05° (V)
Angular Resolution
11 W
Power Consumption
W 137 x D 120 x H 36 mm [Window Surface Height 32 mm]
Dimensions
600 g
Weight
-40℃ ~ 85℃
Operating temperature
≤25 dB(A)
Noise
RELIABILITY VALIDATION
UV Aging
High-Temperature
IP6K7 & IP6K9K
Mechanical Shock
Salt Spray
Thermal Shock with Water Splash
Low-Temperature Wakeup
Humid Heat Cyclic
Vibration with Thermal Cycling
Electrical & Electronic Test
CERTIFICATIONS
- Class 1 Eye Safety
- ISO 26262 ASIL B Functional Safety Product Certification
- ISO 21434 Cybersecurity Product Certification
- ISO 21448 Compliant Development Process
HESAI ETX: 400m Ultra-Long Range Expanding Safety Margin for L3
Equipped with Hesai’s proprietary photon vector technology, ETX extends ranging capability by 30% while maintaining Class 1 eye safety, reaching 400 m at 10% reflectivity – twice the ranging capability of AT128.

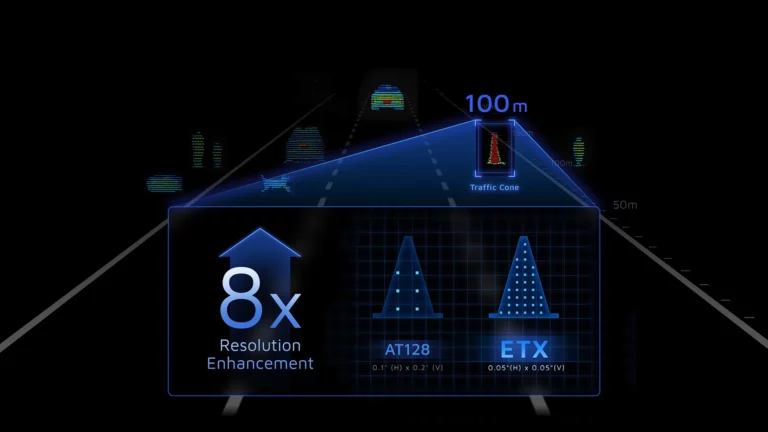

Outstanding Small Object Detection
With an angular resolution of 0.05° (H) × 0.05° (V), the ETX offers eight times the resolution of the AT128 lidar, providing clear perception of small objects at long distances.

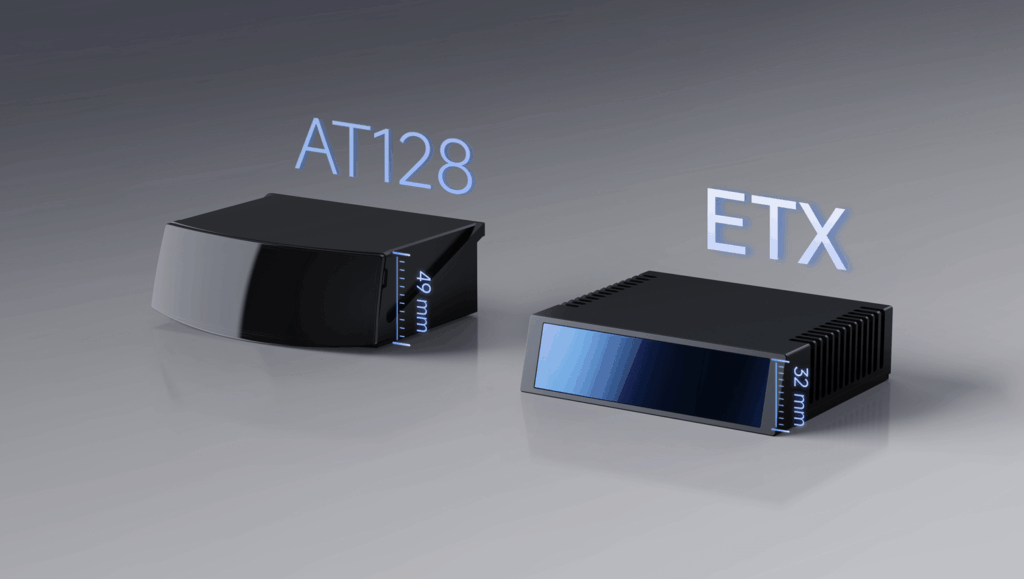

35% Reduction in Window Height for
Efficient In-Cabin Solution
The ETX features a 35% reduction in window height compared to the AT128. The compact form factor unlocks the possiblity of in-cabin lidar installation solution, driving forward the future of autonomous driving.
APPLICATIONS
ADAS
Robotaxi
Robotrucking
HESAI Lidar Sensor Selection Guide
| JT16 | JT32 | JT64P | JT128 | FTX140/180 | FT120 | ATX | AT128 | AT360 | ETXP | XT16 | XT32 XT32M1X |
XT32M XT32m2X |
QT128 | OT128 | Pandar128 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Object Detection | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Mapping | ● | ● | ● | ● | ● | ● | ||||||||||
| Object Identification | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| Automotive Grade | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||
| Channels | 16 | 32 | 64 | 128 | 192x256 | 120x160 | 256 | 128 | 360 | 1080/2160/4320 | 16/32 | 32 | 32 | 128 | 128 | 128 |
| Field of View | 360° X 40° | 360° X 40° | 360° X 189° | 360° X 99° | 140° X 105° / 180° X 140° | 100° X 75° | 140° x 20° | 120° X 25.4° | 18° X 120° | 120° × 20° | 360° X 31° | 360° X 31° | 360° X 40.3° | 360° X 105.2° | 360° X 40° | 360° x 40° |
| Range | 30m @ 10% Reflectivity | 30m @ 10% Reflectivity | 40m @ 10% Reflectivity | 20m @ 10% Reflectivity | 30m @ 10% Reflectivity | 22m @ 10% Reflectivity | 200 m @ 10% Reflectivity | 210m @ 10% Reflectivity | 250m | 300 m @ 10% Reflectivity | 80m @ 10% Reflectivity | 80m @ 10% Reflectivity | 80m @ 10% Reflectivity | 20m @ 10% Reflectivity | 200m @ 10% Reflectivity | 200 m @10% Reflectivity |
| Min Range | 0m | 0m | 0m | 0m | 0.1m | 1m | 0.05m | 0.05m | 0.5m | 0.05m | 0.3m | 0.3m | ||||
| Weight | 0.199kg | 0.199kg | 0.22kg | 0.22kg | 0.2kg | 0.7 kg | 0.36 kg | 0.94 kg | 950g | 0.6 kg | 0.8 kg | 0.8kg | 0.49 kg | 0.7 kg | 2.2 kg | 1.63 kg |
| Accuracy | 3cm | 5 cm | 5 cm | 5 cm | 5cm | 1 cm | 1cm | 1 cm | 3 cm | 3 cm | 5cm | |||||
| Max Range | 100m | 100m | 25m | 25m | 50m | 300m | 260m | 300m | 120m | 120m | 300m | 50m | 230m | 200m | ||
| Resolution Horizontal | 0.6° | 0.6° | 0.4° | 0.45° | 0.56° | 0.625° | 0.08° | 0.1° - 0.2° | 0.06° - 0.12° | 0.06° | 0.09° - 0.36° | 0.09° - 0.36° | 0.09° - 0.36° | 0.4° - 1.6° | 0.1° - 0.4° | 0.1° |
| Resolution Vertical | 2.67° | 1.29° | 1.5° | 0.8° | 0.56° | 0.625° | 0.1° | 0.2° - 0.8° | 0.05° - 0.1° | 0.055° | 1°/ 2° | 1° | 1.3° | 0.4° - 1.6° | 0.125° - 1.72° | 0.125° |
| Availability | Phasing Out | Taking Orders | Taking Orders | Now | Sampling Now. Production June 2026 | Phasing Out | Now | Now | Now | Sampling Now. Production 2027 | Now | Now | Now | Now | Now | Phasing Out |
Frequently Asked Questions
What is the HESAI ETX LiDAR used for?
The HESAI ETX is an automotive grade 120° ultra long range LiDAR designed for L3 autonomous driving, advanced ADAS, robotaxi, and high speed vehicle perception. It is built for front facing long distance detection where vehicles need more time to identify road hazards and react safely.
Why is it important for L3 autonomous driving?
It provides ultra long range perception, high resolution point clouds, and a slim low profile form factor that supports roof or behind windshield integration — engineered for L3 and L4 autonomous driving applications.
What is the detection range of the HESAI ETX?
Listed ranging capability is up to 400 m at 10 percent reflectivity — suitable for long distance highway perception, early object detection, and an expanded safety margin in higher level autonomous driving systems.
What makes it different from AT128?
It reaches up to 400 m at 10 percent reflectivity, approximately twice the ranging capability of the AT128, while its 0.05° x 0.05° angular resolution provides significantly higher detail for object detection.
Why does small object detection matter?
L3 and L4 vehicles must identify distant road hazards early, not only large vehicles. The sensor can detect small objects, such as wooden blocks measuring 15 x 25 cm, at distances of up to 150 m, supporting safer high speed driving decisions.
Can it be installed behind the windshield?
Yes. It can be mounted behind the cabin windshield and features a reduced window height compared with earlier models, supporting more efficient in cabin LiDAR integration without large external sensor housings.
What is Photon Vector Technology?
A proprietary technology that extends ranging capability while maintaining Class 1 eye safety and reducing size and power consumption — improving ranging performance while keeping the sensor compact and efficient.
How powerful is the point cloud output?
Up to 5,600,000 points per second in single return mode — dense 3D perception for long range ADAS and autonomous driving scenarios where distant vehicles, pedestrians, and road objects need to be detected clearly.
Is it suitable for automotive safety and compliance requirements?
Yes. Listed items include Class 1 Eye Safety, ISO 26262 ASIL B Functional Safety Product Certification, ISO 21434 Cybersecurity Product Certification, and an ISO 21448 compliant development process.
When should a team choose the HESAI ETX?
Choose the ETX when you need an automotive grade ultra long range LiDAR for L3 autonomous driving, L4 fleet development, robotaxi perception, highway ADAS, or behind windshield front sensing — most relevant when 400 m class detection, small object recognition, high point density, and compact low profile vehicle integration are key requirements.
