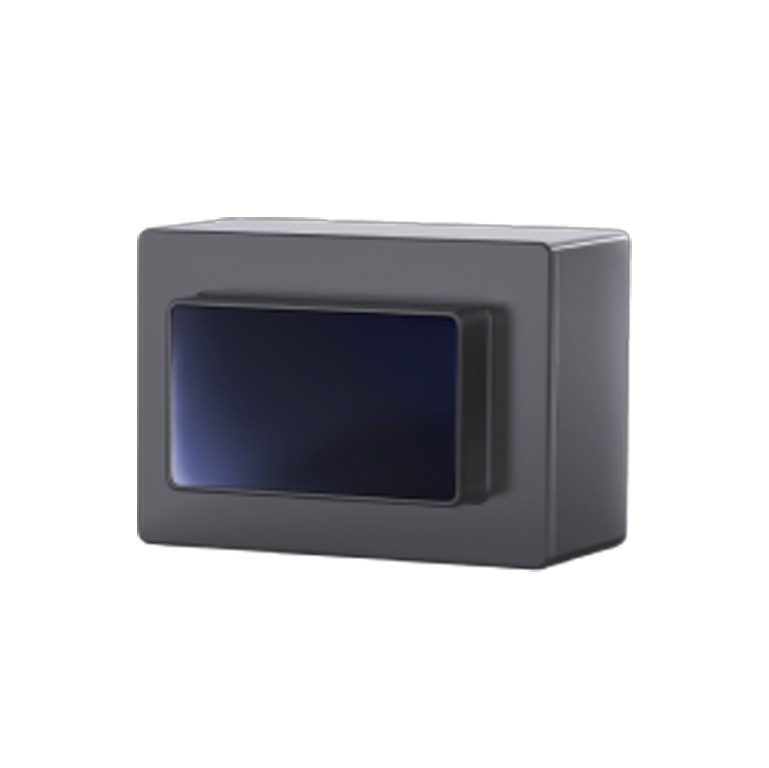

HESAI FTX 180 Automotive, Robotics, Industrial Short Range Solid State Lidar Sensor
Automotive-Grade Fully Solid-State 180°
Short-Range Lidar
END MARKETS
$1,500.00
Redefining Short-Range Blind Spot Perception with HESAI FTX

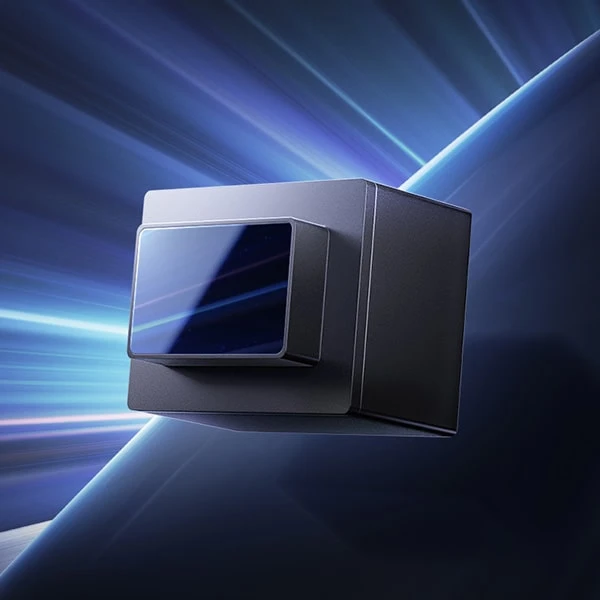

Compact Size, High Performance Lidar
With significant enhancements in the transceiver modules, FTX delivers industry-leading resolution in an ultra-compact form, redefining short-range blind spot coverage.
Short-Range Lidar

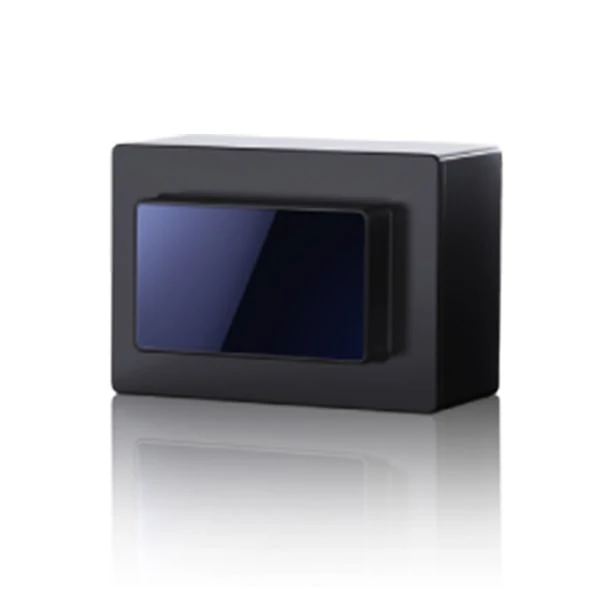

HESAI FTX
*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.
SPECIFICATION DETAILS
30 m @10% Reflectivity
Ranging Capability
0.49M pts/s [Single Return]
Point Rate
140 (optional)° x 180 (optional)°
Field of View
256 (H) x 192 (V)
Pixel Resolution
<6 W
Power Consumption
W 74 x D 50 x H 44 mm
Dimensions
~200 g
Weight
RELIABILITY VALIDATION
UV Aging
High-Temperature
IP6K7 & IP6K9K
Mechanical Shock
Thermal Shock with Water Splash
Low-Temperature Wakeup
Humid Heat Cyclic
Vibration with Thermal Cycling
Electrical & Electronic Test
CERTIFICATIONS
- Class 1 Eye Safety
- ISO 26262 ASIL B Process Certification
- ISO 21434 Process Certification

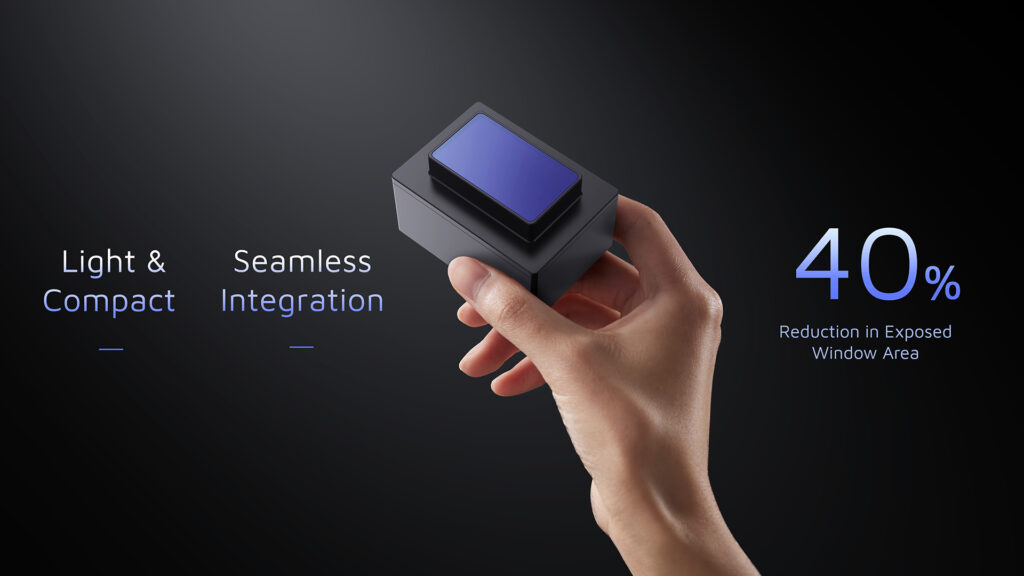

HESAI FTX - Light and Compact for Seamless Integration
While delivering powerful performance, FTX features a significantly smaller form factor – 66% lighter than the previous generation. The embedded installation reduces exposed window area by 40%, enabling a sleeker design.

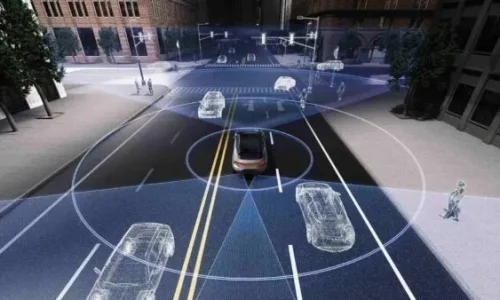

Ultra-High Resolution for Blind Spot Detection
FTX delivers excellent resolution performance, with a point rate 2.5 times higher than the previous generation, effectively covering blind spots around the vehicle and accurately detects obstacles such as strollers, e-bikes, and pedestrians.

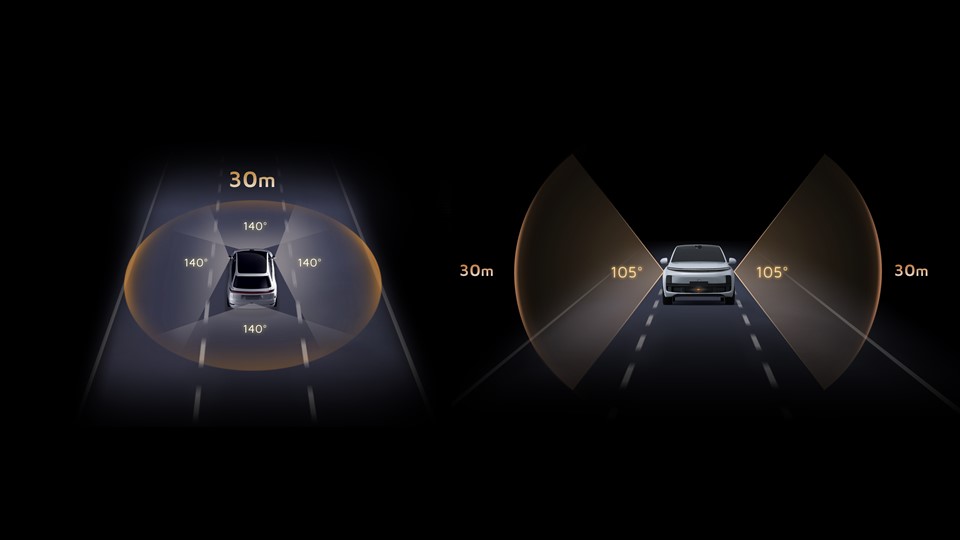

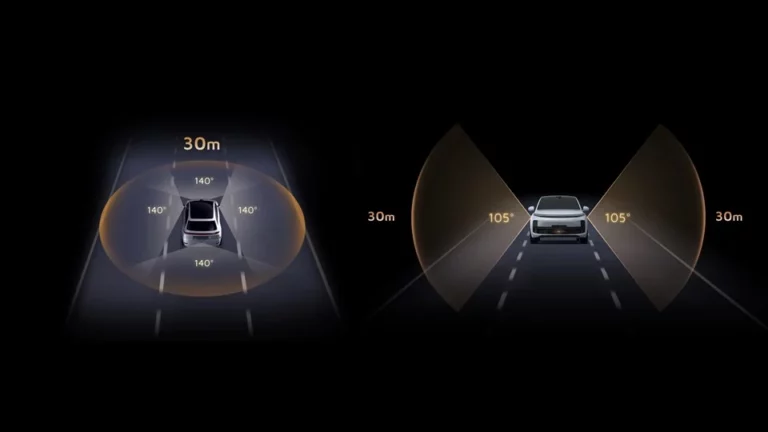

360° Coverage with Zero Blind Spots
FTX uses fully solid-state e-scanning technology, achieving a maximum horizontal field of view of 180° and a vertical field of view of 140°
APPLICATIONS
ADAS
Robotaxi
Robotrucking
Service Robots
Warehousing and Logistics
HESAI Lidar Sensor Selection Guide
| JT16 | JT32 | JT64P | JT128 | FTX140/180 | FT120 | ATX | AT128 | AT360 | ETXP | XT16 | XT32 XT32M1X |
XT32M XT32m2X |
QT128 | OT128 | Pandar128 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Object Detection | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Mapping | ● | ● | ● | ● | ● | ● | ||||||||||
| Object Identification | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| Automotive Grade | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||
| Channels | 16 | 32 | 64 | 128 | 192x256 | 120x160 | 256 | 128 | 360 | 1080/2160/4320 | 16/32 | 32 | 32 | 128 | 128 | 128 |
| Field of View | 360° X 40° | 360° X 40° | 360° X 189° | 360° X 99° | 140° X 105° / 180° X 140° | 100° X 75° | 140° x 20° | 120° X 25.4° | 18° X 120° | 120° × 20° | 360° X 31° | 360° X 31° | 360° X 40.3° | 360° X 105.2° | 360° X 40° | 360° x 40° |
| Range | 30m @ 10% Reflectivity | 30m @ 10% Reflectivity | 40m @ 10% Reflectivity | 20m @ 10% Reflectivity | 30m @ 10% Reflectivity | 22m @ 10% Reflectivity | 200 m @ 10% Reflectivity | 210m @ 10% Reflectivity | 250m | 300 m @ 10% Reflectivity | 80m @ 10% Reflectivity | 80m @ 10% Reflectivity | 80m @ 10% Reflectivity | 20m @ 10% Reflectivity | 200m @ 10% Reflectivity | 200 m @10% Reflectivity |
| Min Range | 0m | 0m | 0m | 0m | 0.1m | 1m | 0.05m | 0.05m | 0.5m | 0.05m | 0.3m | 0.3m | ||||
| Weight | 0.199kg | 0.199kg | 0.22kg | 0.22kg | 0.2kg | 0.7 kg | 0.36 kg | 0.94 kg | 950g | 0.6 kg | 0.8 kg | 0.8kg | 0.49 kg | 0.7 kg | 2.2 kg | 1.63 kg |
| Accuracy | 3cm | 5 cm | 5 cm | 5 cm | 5cm | 1 cm | 1cm | 1 cm | 3 cm | 3 cm | 5cm | |||||
| Max Range | 100m | 100m | 25m | 25m | 50m | 300m | 260m | 300m | 120m | 120m | 300m | 50m | 230m | 200m | ||
| Resolution Horizontal | 0.6° | 0.6° | 0.4° | 0.45° | 0.56° | 0.625° | 0.08° | 0.1° - 0.2° | 0.06° - 0.12° | 0.06° | 0.09° - 0.36° | 0.09° - 0.36° | 0.09° - 0.36° | 0.4° - 1.6° | 0.1° - 0.4° | 0.1° |
| Resolution Vertical | 2.67° | 1.29° | 1.5° | 0.8° | 0.56° | 0.625° | 0.1° | 0.2° - 0.8° | 0.05° - 0.1° | 0.055° | 1°/ 2° | 1° | 1.3° | 0.4° - 1.6° | 0.125° - 1.72° | 0.125° |
| Availability | Phasing Out | Taking Orders | Taking Orders | Now | Sampling Now. Production June 2026 | Phasing Out | Now | Now | Now | Sampling Now. Production 2027 | Now | Now | Now | Now | Now | Phasing Out |
Frequently Asked Questions
What is the HESAI FTX LiDAR used for?
The HESAI FTX is an automotive grade fully solid state short range LiDAR designed for blind spot perception, ADAS, autonomous mobility, robotics, and industrial applications. It is built to detect nearby objects around vehicles and robots where wide angle short range sensing is critical.
Why is it important for blind spot detection?
It combines an ultra wide field of view, high resolution, and a compact solid state design, helping detect nearby obstacles such as pedestrians, e bikes, strollers, and low objects that limited angle sensors can miss.
Is it a solid state LiDAR?
Yes. It is a fully solid state short range LiDAR using electronic scanning technology, which enables a compact form factor and wide field of view.
What is the field of view of the HESAI FTX?
Configurations are listed around 180° horizontal and 140° vertical coverage. This wide view helps cover close range blind spots around vehicles, robots, and autonomous platforms.
What is the detection range?
As a short range LiDAR, configurations offer around 20 m to 30 m detection at 10 percent reflectivity depending on the field of view variant — suitable for close range object detection around vehicles and robots.
What makes it suitable for ADAS applications?
It is automotive grade, fully solid state, compact, and power efficient. The wide field of view and high point rate support near vehicle object detection in scenarios such as lane changes, parking, turning, and close range maneuvering.
Can it be used in robotics and AGV or AMR systems?
Yes. It suits AGV, AMR, delivery robots, lawn mowing robots, embodied intelligence, and other robotics applications. Compact size, low power consumption, and wide short range perception make it effective for detecting nearby obstacles in dynamic environments.
How compact is the design?
The lightweight structure weighs approximately 160 g to 200 g depending on configuration, and embedded installation with a small exposed optical window makes it easier to integrate into vehicle or robot body designs.
Is it suitable for harsh automotive and outdoor conditions?
Yes. Validation covers UV aging, high temperature, mechanical shock, thermal shock with water splash, low temperature wakeup, humid heat cycling, vibration with thermal cycling, and electrical and electronic testing, with IP6K7 and IP6K9K protection.
When should a team choose the HESAI FTX instead of a long range LiDAR?
Choose the FTX when the main need is short range, wide angle blind spot perception rather than long distance forward sensing — especially for ADAS blind spots, autonomous parking, close range object detection, delivery robots, AGV and AMR navigation, and compact robotic platforms.
