360° × 95° coverage
Full horizontal rotation with a 95° vertical span (−4.4° to 88.7°) — ground, frontal and overhead detection from one sensor.
Compact 360° × 95° mechanical scanning 3D LiDAR
END MARKETS
$1,650.00
JT64P is a compact 64-channel mechanical LiDAR designed for robotics and industrial applications. It provides 360° horizontal and 95° vertical coverage, measuring up to 60 m with ±3 cm typical accuracy.
Using 905 nm Class 1 eye-safe ToF technology, it delivers up to 1.15 million points/sec via 100Base-TX Ethernet. GNSS/PTP synchronization and a built-in IMU support reliable multi-sensor integration and calibration.
Full horizontal rotation with a 95° vertical span (−4.4° to 88.7°) — ground, frontal and overhead detection from one sensor.

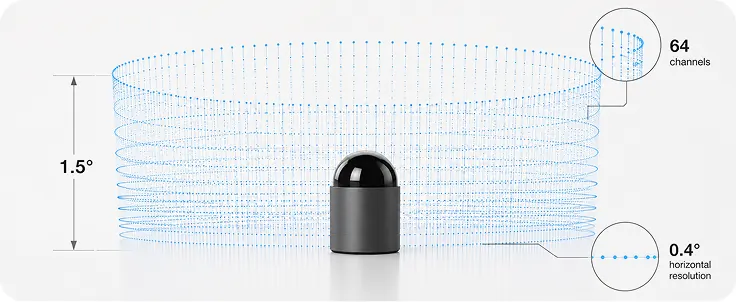

64 unevenly distributed channels at 1.5° average vertical resolution, with 0.4° horizontal resolution at 10 Hz.
Φ62.5 mm base, 73.05 mm tall, under 250 g and 6.7 W typical — suitable for embedded installation on small platforms.

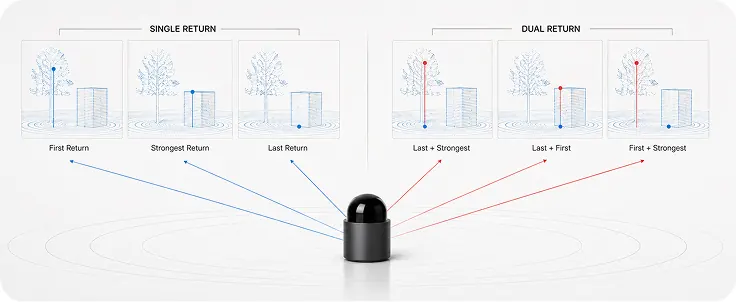

First / Strongest / Last in single return; Last+Strongest, Last+First or First+Strongest in dual return mode.

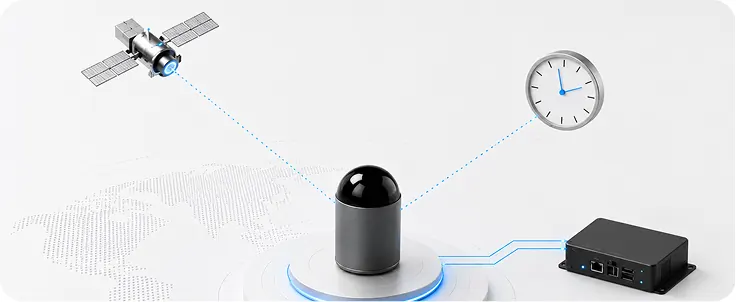

GNSS (PPS + NMEA) or PTP clock source, including 802.1AS Automotive, for precise multi-sensor fusion.

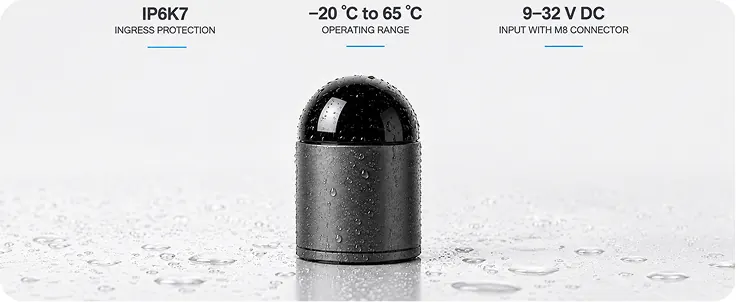

IP6K7 ingress protection, −20 °C to 65 °C operating range, 9–32 V DC input with an M8 connector.
Source: JT64P 64-Channel Mechanical Lidar User Manual, doc version J09-en-260410, Section 1.5.
Test conditions: normal incidence, 100 klx ambient illuminance, probability of detection (PoD) > 70%, and false alarm rate (FAR) < 1E-4.
Vertical angles' projections onto the plane, not the ones in space.
The input voltage at the lidar's connector shall be within 9 to 32 V DC.
Typical value.
Both refer to ambient air temperature. During operation, the lidar's surface and internal temperatures may exceed the ambient air temperature.
Defined as the point cloud data points (number of returns) generated per second. At 10 Hz with 0.4° horizontal resolution, each channel generates 900 points per frame; 64 channels generate 57,600 points per frame and 576,000 points per second. Dual return mode doubles this figure.
Specifications are subject to change. Please refer to the latest version of the user manual.
Key mechanical and electrical requirements from the user manual.
SEMS screws (pre-attached flat and lock washers), property class 4.8 or higher. Recommended torque 0.8–1 N·m into the aluminium-alloy threaded holes. Thread service life: ten screwing operations.

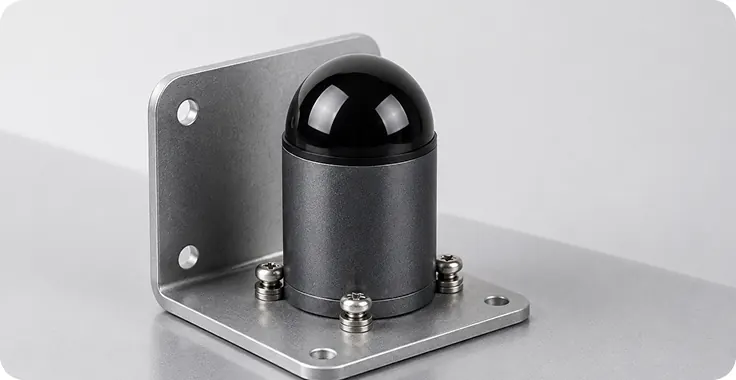

Mount on a properly grounded metal bracket with reliable electrical continuity between enclosure, screws and bracket. Where grounding is impractical, use shielded twisted pair (STP) Ethernet with grounded connectors.
PPS cycle 1 s ± 50 μs, pulse width ≥ 1 ms (10–100 ms recommended). The NMEA message must start after the PPS rising edge and end at least 100 ms before the next one.
End markets: Industrial Automation and Robotics.

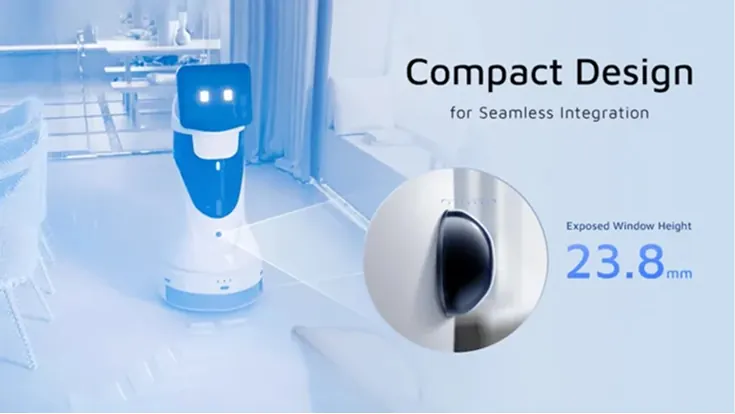

Compact body suited to embedded installation on small mobile platforms.
Φ62.5 × H73.05 mm cylindrical enclosure, under 250 g.
360° mechanical rotation with a 95° vertical field of view.
Documentation for the JT64P.
