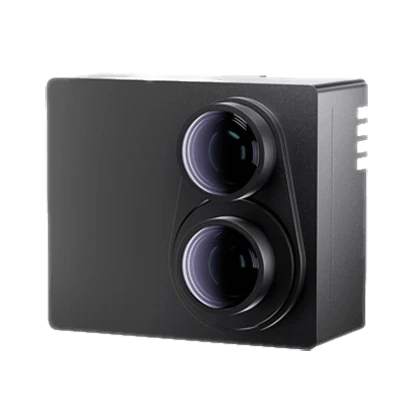

HESAI FTX 140 Automotive, Robotics, Industrial Short Range Solid State Lidar Sensor

Automotive-Grade Fully Solid-State 140°
Short-Range Lidar

END MARKETS

INDUSTRIAL AUTOMATION ROBOTICS

$1,500.00

Redefining Short-Range Blind Spot Perception with HESAI FTX

Compact Size, High Performance Lidar

With significant enhancements in the transceiver modules, FTX delivers industry-leading resolution in an ultra-compact form, redefining short-range blind spot coverage.

Short-Range Lidar

HESAI FTX

*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.

SPECIFICATION DETAILS

30 m @10% Reflectivity

Ranging Capability

0.49M pts/s [Single Return]

Point Rate

140 (optional)° x 180 (optional)°

Field of View

256 (H) x 192 (V)

Pixel Resolution

<6 W

Power Consumption

W 74 x D 50 x H 44 mm

Dimensions

~200 g

Weight

RELIABILITY VALIDATION

UV Aging

High-Temperature

IP6K7 & IP6K9K

Mechanical Shock

Thermal Shock with Water Splash

Low-Temperature Wakeup

Humid Heat Cyclic

Vibration with Thermal Cycling

Electrical & Electronic Test

CERTIFICATIONS

Class 1 Eye Safety
ISO 26262 ASIL B Process Certification
ISO 21434 Process Certification

HESAI FTX - Light and Compact for Seamless Integration

While delivering powerful performance, FTX features a significantly smaller form factor – 66% lighter than the previous generation. The embedded installation reduces exposed window area by 40%, enabling a sleeker design.

Ultra-High Resolution for Blind Spot Detection

FTX delivers excellent resolution performance, with a point rate 2.5 times higher than the previous generation, effectively covering blind spots around the vehicle and accurately detects obstacles such as strollers, e-bikes, and pedestrians.

360° Coverage with Zero Blind Spots

FTX uses fully solid-state e-scanning technology, achieving a maximum horizontal field of view of 180° and a vertical field of view of 140°

APPLICATIONS

ADAS

Robotaxi

Robotrucking

Service Robots

Warehousing and Logistics

HESAI Lidar Sensor Selection Guide

Scroll to view all columns

	JT16	JT32	JT64P	JT128	FTX140/180	FT120	ATX	AT128	AT360	ETXP	XT16	XT32 XT32M1X	XT32M XT32m2X	QT128	OT128	Pandar128
Object Detection	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
Mapping			●	●								●	●		●	●
Object Identification	●			●			●	●	●	●		●	●	●	●	●
Automotive Grade					●	●	●	●	●	●				●	●	●
Channels	16	32	64	128	192x256	120x160	256	128	360	1080/2160/4320	16/32	32	32	128	128	128
Field of View	360° X 40°	360° X 40°	360° X 189°	360° X 99°	140° X 105° / 180° X 140°	100° X 75°	140° x 20°	120° X 25.4°	18° X 120°	120° × 20°	360° X 31°	360° X 31°	360° X 40.3°	360° X 105.2°	360° X 40°	360° x 40°
Range	30m @ 10% Reflectivity	30m @ 10% Reflectivity	40m @ 10% Reflectivity	20m @ 10% Reflectivity	30m @ 10% Reflectivity	22m @ 10% Reflectivity	200 m @ 10% Reflectivity	210m @ 10% Reflectivity	250m	300 m @ 10% Reflectivity	80m @ 10% Reflectivity	80m @ 10% Reflectivity	80m @ 10% Reflectivity	20m @ 10% Reflectivity	200m @ 10% Reflectivity	200 m @10% Reflectivity
Min Range	0m	0m	0m	0m		0.1m		1m			0.05m	0.05m	0.5m	0.05m	0.3m	0.3m
Weight	0.199kg	0.199kg	0.22kg	0.22kg	0.2kg	0.7 kg	0.36 kg	0.94 kg	950g	0.6 kg	0.8 kg	0.8kg	0.49 kg	0.7 kg	2.2 kg	1.63 kg
Accuracy		3cm			5 cm	5 cm		5 cm	5cm		1 cm	1cm	1 cm	3 cm	3 cm	5cm
Max Range	100m	100m	25m	25m		50m	300m	260m	300m		120m	120m	300m	50m	230m	200m
Resolution Horizontal	0.6°	0.6°	0.4°	0.45°	0.56°	0.625°	0.08°	0.1° - 0.2°	0.06° - 0.12°	0.06°	0.09° - 0.36°	0.09° - 0.36°	0.09° - 0.36°	0.4° - 1.6°	0.1° - 0.4°	0.1°
Resolution Vertical	2.67°	1.29°	1.5°	0.8°	0.56°	0.625°	0.1°	0.2° - 0.8°	0.05° - 0.1°	0.055°	1°/ 2°	1°	1.3°	0.4° - 1.6°	0.125° - 1.72°	0.125°
Availability	Phasing Out	Taking Orders	Taking Orders	Now	Sampling Now. Production June 2026	Phasing Out	Now	Now	Now	Sampling Now. Production 2027	Now	Now	Now	Now	Now	Phasing Out
