ONX True Solid State LiDAR | 140 m Range 3D and 6D Sensing
Compact solid-state LiDAR with dense point cloud data and up to 140 m detection range for advanced automation applications.
END MARKETS
Price range: $4,495.00 through $6,995.00
ONX: She Sees Everything

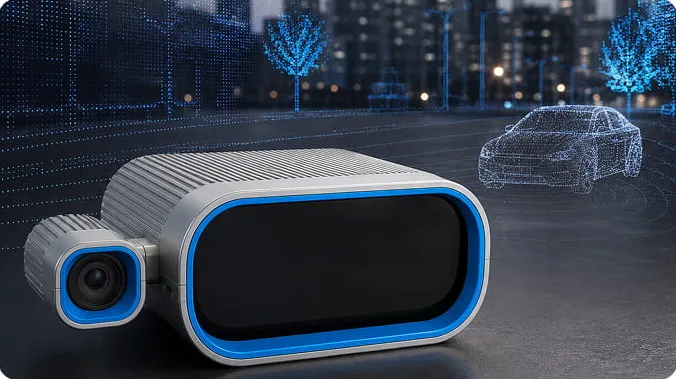

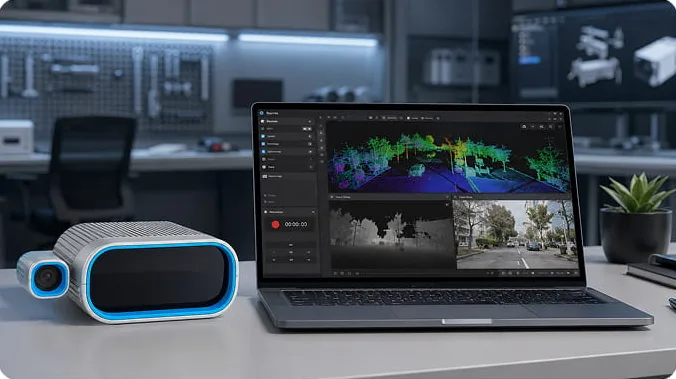

ONX is a true solid state lidar, it delivers high-quality, dense 3D and 6D data that empowers smarter, safer, and more efficient operations in these markets: smart cities, security, and mobility. ONX 3D: See in 3D: Depth, Detail, and Intensity in every frame. ONX 6D: Unlock the Full Picture: 3D point cloud with intensity data and a synchronized 2D camera image for enhanced scene understanding.

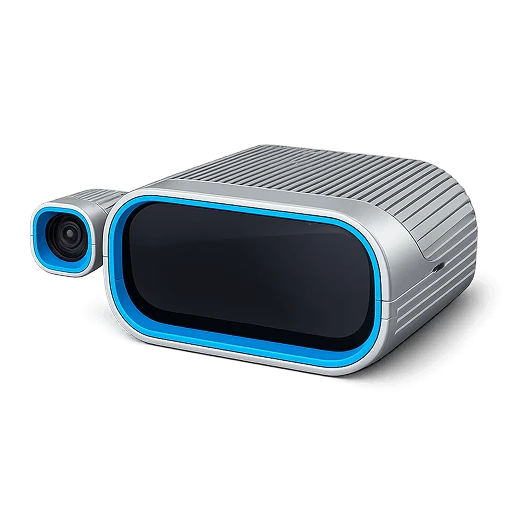

True Solid State LiDAR
ONX
Specifications subject to change without notice.
*Value depends on LiDAR configuration: 10 m or 140 m detection range, 10 Hz or 20 Hz frame rate. Values noted here correspond to a 140 m, 20 Hz LiDAR.
**Value from factory test on 50% Lambertian target at 25°C moved from 5 to 75 m.
***Power consumption averages 15 W for a 10 Hz LiDAR without Advanced Reflector Handling, and 23 W for a 20 Hz LiDAR with Advanced Reflector Handling.
SPECIFICATION DETAILS
140 m
Best Range
50 m at 10% Target
Range on 10% Target
57.6° x 16.8°
Field of View
215 040 pts/sec
Points per Second
20 Hz
Highest Frame Rate
2.9 cm
Typical Accuracy
149.5 mm x 136.6 mm x 80.5 mm
Dimensions
1.3 kg
Weight

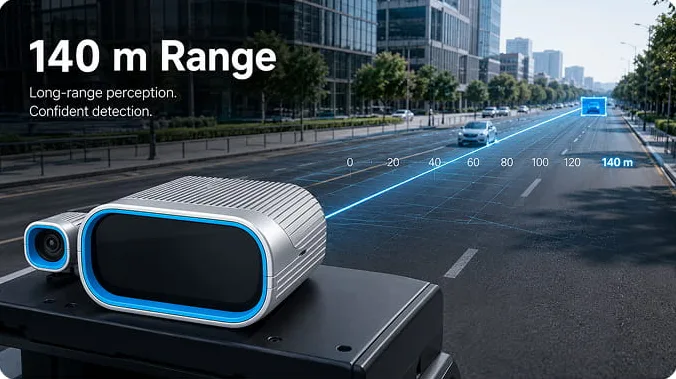

140 m BEST RANGE
57.6° x 16.8° Field of View LiDAR
Delivers 57.6° x 16.8° field of view, 140 m best range detection, and 2.9 cm typical accuracy with 1000 BASE-T GigE output and Class 1 (IEC 60825-1:2014) eye-safe laser in a compact IP65-rated housing.
ONX Studio Software Platform

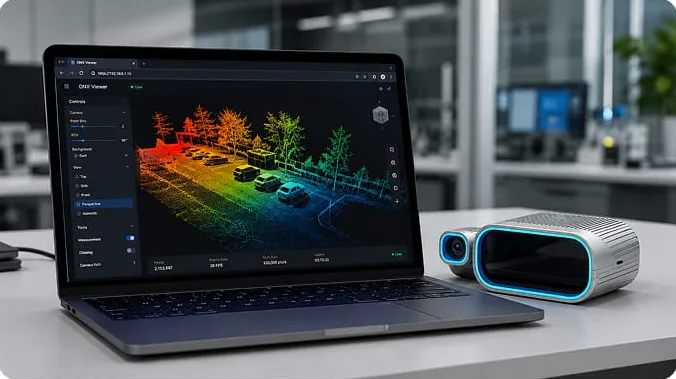

Live Point Cloud Viewer
ONX offers a web interface that includes a live point cloud viewer. The on board point cloud viewer works anywhere, all the time, on all major browsers. No need for installation, no compatibility issues.
SDK for Fast Integration
The real time, optimized SDK allows you to feed the point cloud data into your applications for further processing. Easy to use and filled with examples and boilerplate code, the SDK will reduce integration time of ONX to only a few hours.
ONX APPLICATIONS
Drone Operations
Security Monitoring
Perimeter Surveillance and Control
Object and Crowd Detection
Intelligent Transportation Systems
Mobile Mapping
Frequently Asked Questions
What is ONX LiDAR?
ONX is a true solid state LiDAR sensor designed to provide reliable 3D perception without moving parts. It is built for applications that need accurate object detection, full scene coverage, and dependable sensing in real world environments.
What is it used for?
Applications that require precise 3D sensing, object detection, environment perception, and scene understanding — including mobility, automation, infrastructure monitoring, industrial systems, robotics, and intelligent sensing.
What makes it a true solid state LiDAR?
There are no moving parts. This design helps improve reliability, durability, and long term performance compared to scanning systems that depend on mechanical movement.
How far can it detect objects?
Objects can be detected up to 140 meters away, while objects only a few centimeters from the sensor can still be measured — capturing both near field and longer range information within the same sensing system.
Can it detect dark objects near reflective surfaces?
Yes. Advanced reflector handling detects low reflective objects even when they are close to highly reflective materials such as traffic signs, license plates, cones, trucks, safety vests, or other shiny surfaces.
Why is reflector handling important?
It reduces interference from bright or reflective surfaces and supports cleaner, more accurate 3D data — important in real environments where dark objects and reflective objects often appear in the same scene.
Does it combine LiDAR and camera data?
Yes. LiDAR data can be combined with 2D camera data, working together to provide synchronized depth and visual information so systems understand both distance and visual context.
Does it provide full scene coverage?
Yes. The full field of view is illuminated in each measurement frame, reducing the risk of missing objects between scan lines or laser spots and supporting consistent detection across the scene.
Is it eye safe?
Yes. It is a Class 1 eye safe LiDAR product, designed to operate safely under normal use conditions while still providing reliable scene illumination and object detection.
What is ONX Studio used for?
ONX Studio is the software environment used to visualize, record, store, and replay LiDAR and camera data in real time. It helps teams test, validate, debug, and develop applications using data captured from the sensor.
Can it be used in challenging lighting or reflective environments?
Yes. It is designed to perform in dynamic environments with dark, bright, or challenging conditions; the combination of LiDAR, camera support, and reflector handling improves sensing reliability.
Who should use ONX LiDAR?
Companies and engineering teams that need reliable 3D perception, solid state sensing, synchronized LiDAR and camera data, full scene coverage, and robust object detection for advanced sensing applications.
