200 m
Black car — clearly detected, enabling emergency avoidance or braking at up to 160 km/h.
Real 192 beams, 300 m range and a 20 Hz frame rate in a 120 × 80 × 30 mm body.
END MARKETS
The EMX is a compact automotive-grade digital LiDAR built for autonomous driving. With 192 physical beams, 2.88 million points per second, a 140° field of view and 300 m detection range, it generates precise point cloud data for reliable long-range 3D perception and object detection.
Three properties that decide what the planner receives and when.

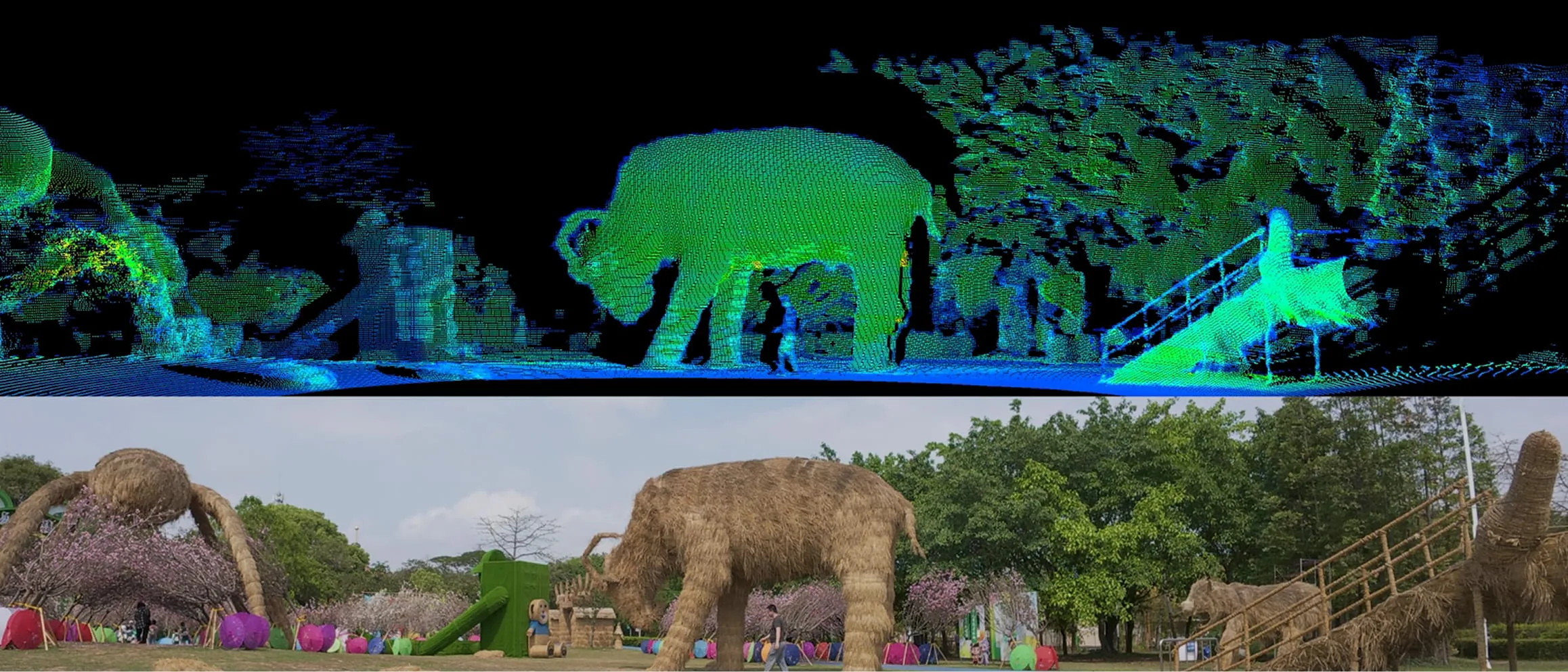

192-beam scanning at 0.08° × 0.10° angular resolution produces a high-definition point cloud of 2.88 million points per second, capturing fine environmental detail throughout the 300 m detection range.
Denser returns mean the planner receives classified objects earlier and with more confidence, which translates directly into faster and more precise intelligent driving decisions.

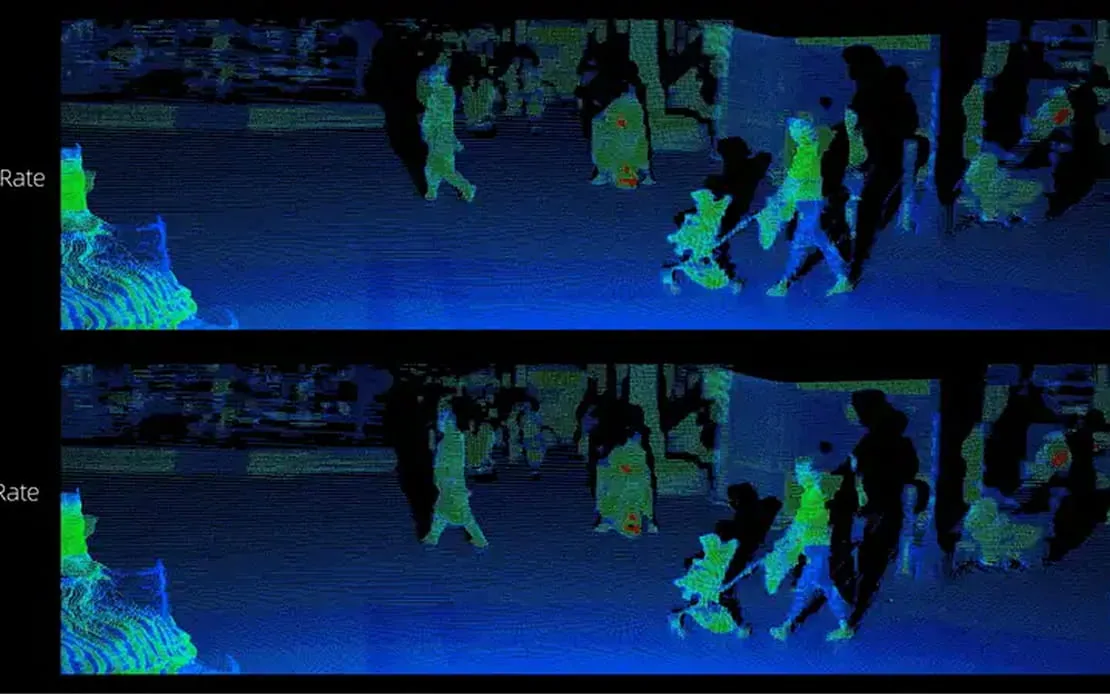

The EMX scans at up to 20 Hz, twice the mainstream industry rate of 10 Hz. Doubling the frame rate halves the response latency of the perception stage.
That matters most in the scenarios where time is scarcest: a high-speed projectile entering the lane, or a vehicle cutting in laterally at close range. A perception system that sees the event 50 ms earlier passes that entire margin to the planner.

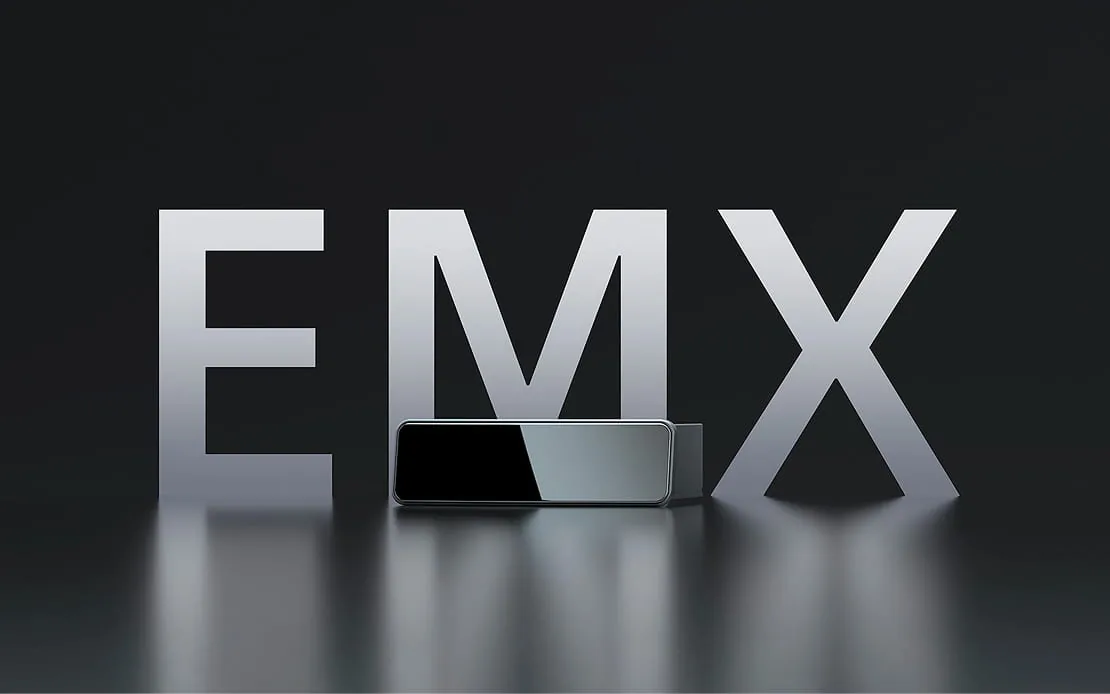

Uniform resolution across a 140° field of view spends the same budget on empty sky as on the object you are tracking. The EMX's intelligent “Gaze” function concentrates scanning effort on a region of interest, improving horizontal angular resolution by up to six times within it.
The sensor keeps its wide coverage for situational awareness while giving the tracking stack a dense, high-resolution view of the object that currently matters.
Manufacturer test results, each paired with the speed at which the detection distance still leaves room to act.

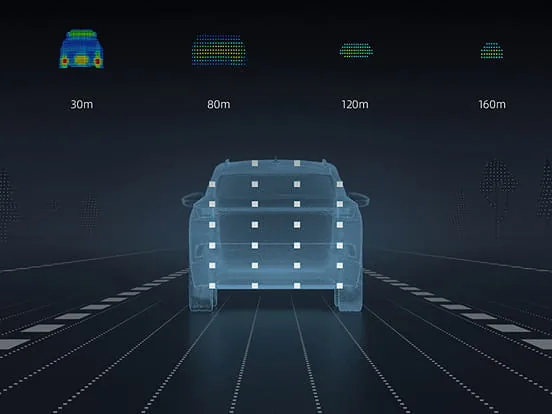

Black car — clearly detected, enabling emergency avoidance or braking at up to 160 km/h.

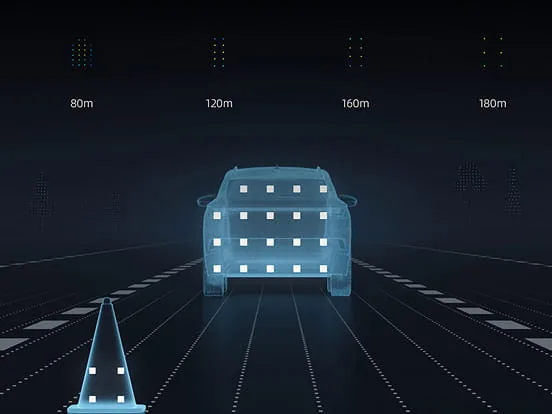

Traffic cones — precisely identified at distance.
High-speed projectile — carton of 30 × 17 cm accurately detected.

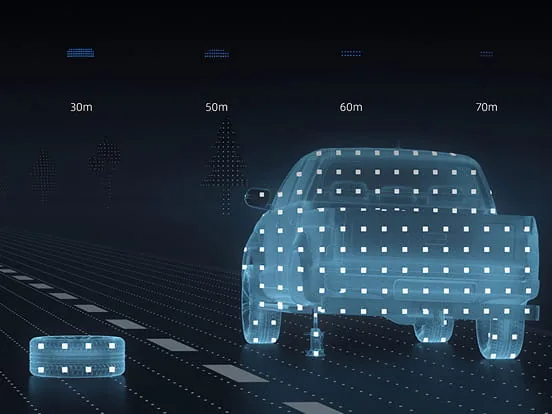

Black tire — stray tire accurately detected on the carriageway.
The complex scenarios that decide whether an autonomous stack ships or stalls.
Prevents highly reflective targets from blooming and inflating their apparent size.
Separates airborne particle returns from genuine attenuated returns.
Sustains performance through road spray, dirt and drying water marks on the window. Each of these is addressed in the optical design and signal path rather than filtered out downstream, which is why the sensor degrades gracefully instead of failing abruptly.

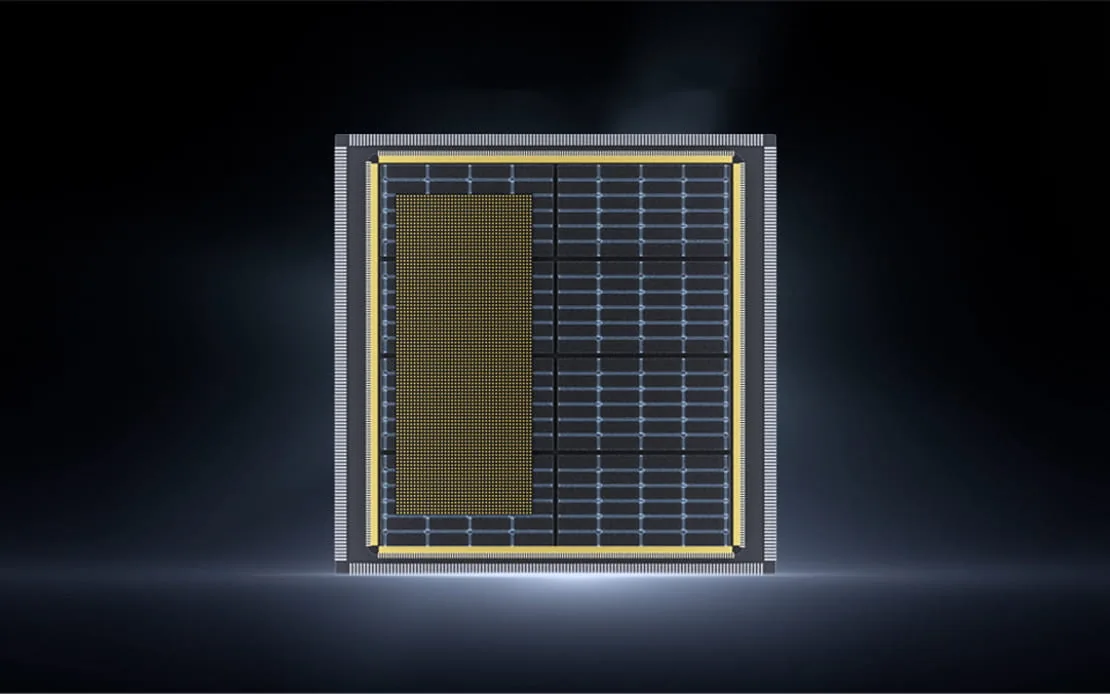

The EMX integrates digital SPAD-SoC and VCSEL chips, giving high detection sensitivity while preserving raw information through the signal chain rather than discarding it in analogue conversion. Preserved raw data enables optimal perception fusion: the LiDAR stream can be synchronised temporally and spatially with raw camera data, so fusion happens on genuinely aligned inputs.
At 120 × 80 × 30 mm the EMX is the smallest digital automotive main LiDAR available, opening integration positions that larger units cannot occupy.
Automotive-grade pressure-jet water resistance — validated for high-pressure wash and road spray exposure. A 140° horizontal field is wider than most main LiDARs, reducing the number of sensors needed to close the frontal arc.
As published by RoboSense. Parameters not disclosed publicly are marked “—”; contact us for the controlled datasheet under NDA.
The “twice the industry mainstream” claim is stated by RoboSense against a 10 Hz reference, the prevailing automotive LiDAR frame rate.
Object detection figures are manufacturer test results under their stated conditions and will vary with reflectivity, weather, contamination and mounting geometry.
Published as 20°. Confirm against the current datasheet for your variant, as customisable configurations are offered on this platform.
Specifications are subject to change. Please confirm against the current RoboSense datasheet before design-in.
